The best way to insulate a Denver car dealership is to treat the showroom and the service bay as two separate projects, not one insulation project in Denver. A showroom is built around glass, so its walls and roof need enough insulation to make up for what large windows can’t hold on their own. A service bay is built around ventilation and chemical exposure instead, since exhaust systems and floor-rated materials matter more there than appearance. Building code treats them differently too. A showroom usually falls under a mercantile occupancy, while the service department typically falls under a separate, moderate-hazard classification. Insulating both spaces the same way is the most common, and costliest, mistake in a Denver dealership project.
Key Takeaways
A Denver dealership showroom and service bay need different insulation strategies, since one is driven by glass and the other by ventilation.
Building code treats a showroom and a service department as separate occupancy classifications.
Fire code, paint booth rules, and overhead door sizing all add detail on top of the core two-zone approach.
How Do You Insulate a Car Showroom in Denver?

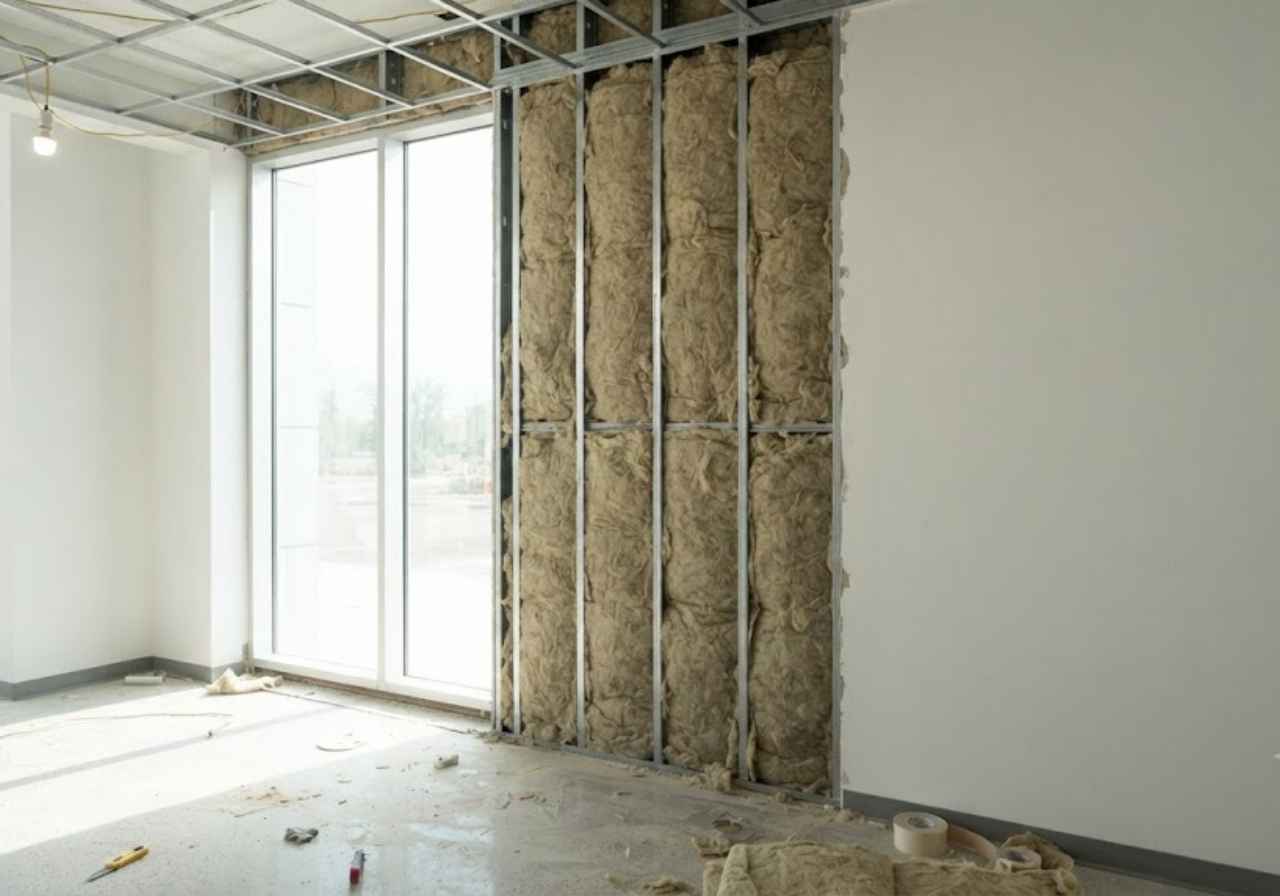

A Denver dealership showroom behaves like a retail space wrapped around a product display. Floor-to-ceiling glass sells the vehicles. The walls and roof around that glass carry a heavier insulation load to compensate for what the glazing alone cannot hold.Closed-cell spray foam insulation holds up well against moisture and seals the small gaps around window and door framing that a showroom’s glass-heavy walls tend to have.

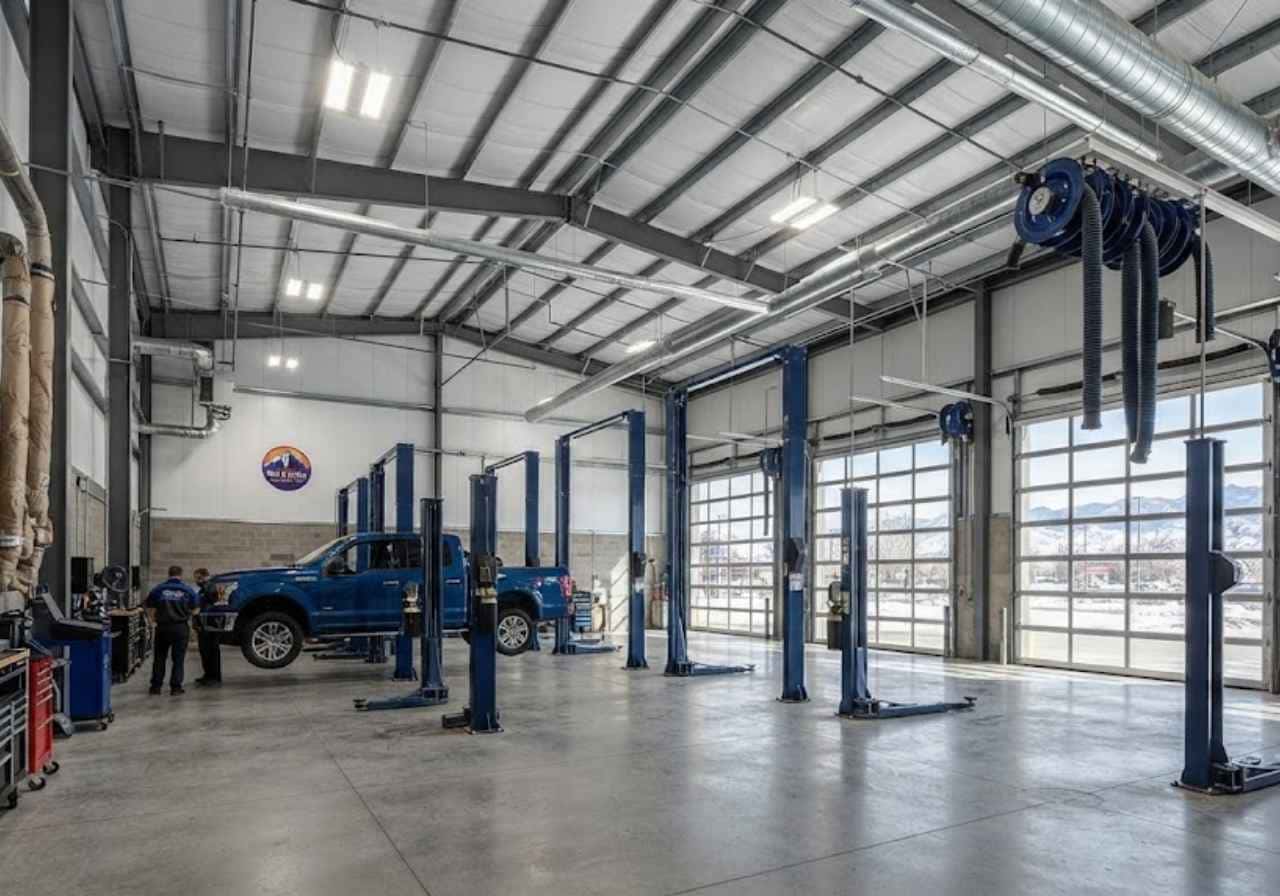

A service bay behaves like a light industrial building instead. Exhaust extraction, floor loading for lifts, and ventilation drive the design far more than appearance does. Most adopted mechanical codes call for six to ten air changes per hour in a working service bay, and that much air movement changes what insulation is actually solving for. A tight envelope keeps the HVAC and exhaust systems from fighting outside air leaking in around doors and wall penetrations. Still, no amount of wall insulation replaces a proper exhaust extraction system tied to each bay.
Which Insulation Materials Work Best for a Denver Dealership?
A dealership building genuinely splits into two insulation material decisions. The showroom needs something that supports the glazing and architectural finish. The service bay needs something that holds up to chemical exposure, vibration, and constant door cycling.
Zone
Material
Why It’s Used Here
Showroom walls and roof
Closed-cell spray foam
Compensates for heat loss through large glazing areas
Service bay walls
Closed-cell spray foam
Resists chemical exposure and vibration better than batt
Paint booth surroundings
Rigid board with fire-rated assembly
Meets fire code clearance and rating requirements
Parts storage and offices
Fiberglass batt
Lower cost where chemical exposure isn’t a factor

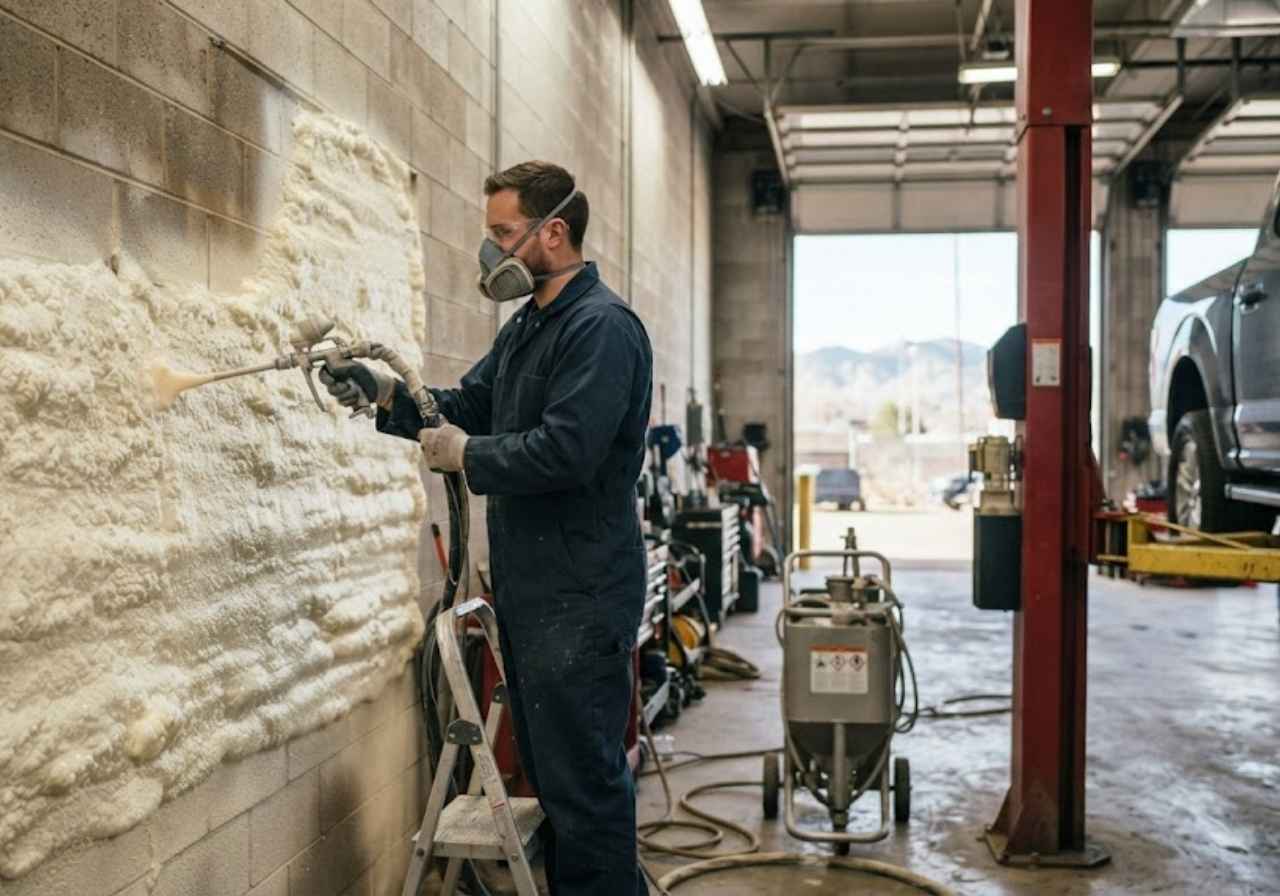

A fiberglass versus spray foam comparison for a Denver dealership usually settles quickly once the zones are separated out. Closed-cell foam earns its higher cost in the service bay and showroom because it insulates and air seals in one step. Standard batt insulation still performs well at a lower cost in parts storage and office areas, where chemical exposure and glazing loss aren’t part of the equation.
What Building and Fire Codes Apply to Denver Dealership Insulation?
Denver’s commercial energy code covers a dealership the same way it covers any commercial building. Still, a dealership is one of the few building types that fall under two occupancy classifications inside one structure.Understanding what R-value measures helps explain why a showroom’s glazing-heavy walls carry a different practical target than a service bay’s exhaust-driven envelope, even though both fall under the same code section on paper.
Spray foam counts as a combustible material under building code, and any exposed foam needs a proper thermal barrier in occupied areas of either zone. A contractor carrying currentspray foam certifications recognized in Denver will plan that barrier correctly around lift bays and storage racks, where clearance needs differ from a typical office wall. Goodventilation during spray foam application keeps installation safe even in a service bay that’s still partially running during the work.
Avoiding a common and expensive spray foam mistake comes down to one thing in a dealership: matching material and barrier choices to the correct occupancy type before installation starts, not after an inspector flags it.
Our team at Grizzly Insulation CO starts a dealership project by walking the showroom and service bay separately. A single estimate covering both spaces the same way almost always misses something. A franchise brand’s design standards often dictate exterior finish choices too. Insulating an existing exterior wall system has to work within those constraints instead of against them. For dealerships adding a paint booth or expanding service capacity, our team coordinates directly with the fire marshal’s requirements before any spray foam goes in near that area.
Financing an insulation project across two building types can get complicated, since a showroom renovation and a service bay retrofit sometimes get budgeted separately even on the same property. Insulation financing in Denver can be structured around either scope, and current commercial rebates in Denver sometimes cover part of the cost for exactly this kind of project.
The Bottom Line for a Denver Dealership Insulation Project
A Denver dealership performs best when the showroom and service bay get scoped as two separate insulation projects that happen to share one roofline. Glass drives the showroom’s needs. Exhaust and chemical exposure drive the service bay’s needs. Denver’s climate pushes both decisions toward higher performance than a milder market would need, since the roof and walls on both sides of the building fight wide temperature swings for most of the year. Getting this split right the first time is what keeps technicians comfortable, utility costs down, and a fire inspection free of surprises.

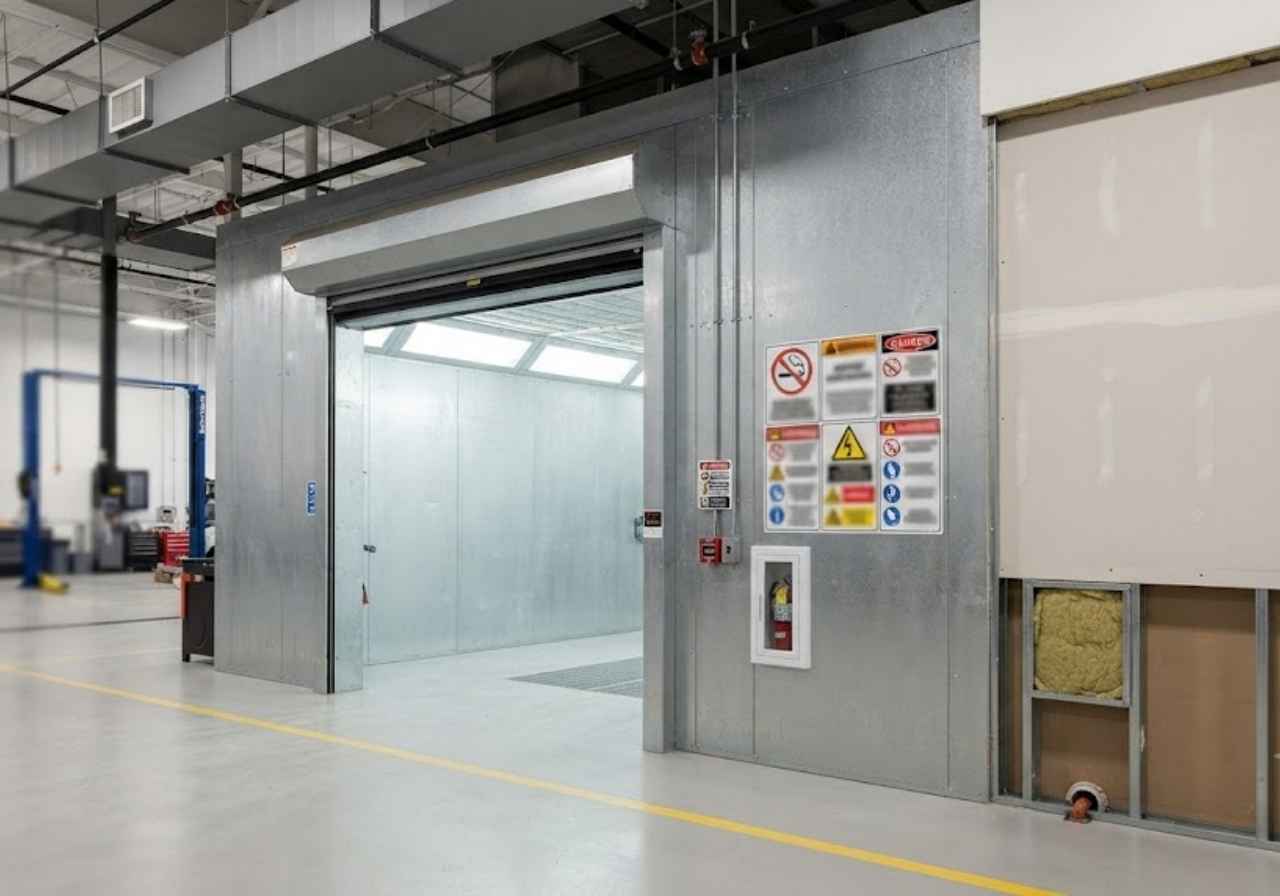

The paint booth itself is a manufactured, code-listed unit, but the walls and structure surrounding it fall under a stricter fire standard than the rest of the service department. Insulation and thermal barrier choices near that area need to account for those clearance and rating rules specifically.

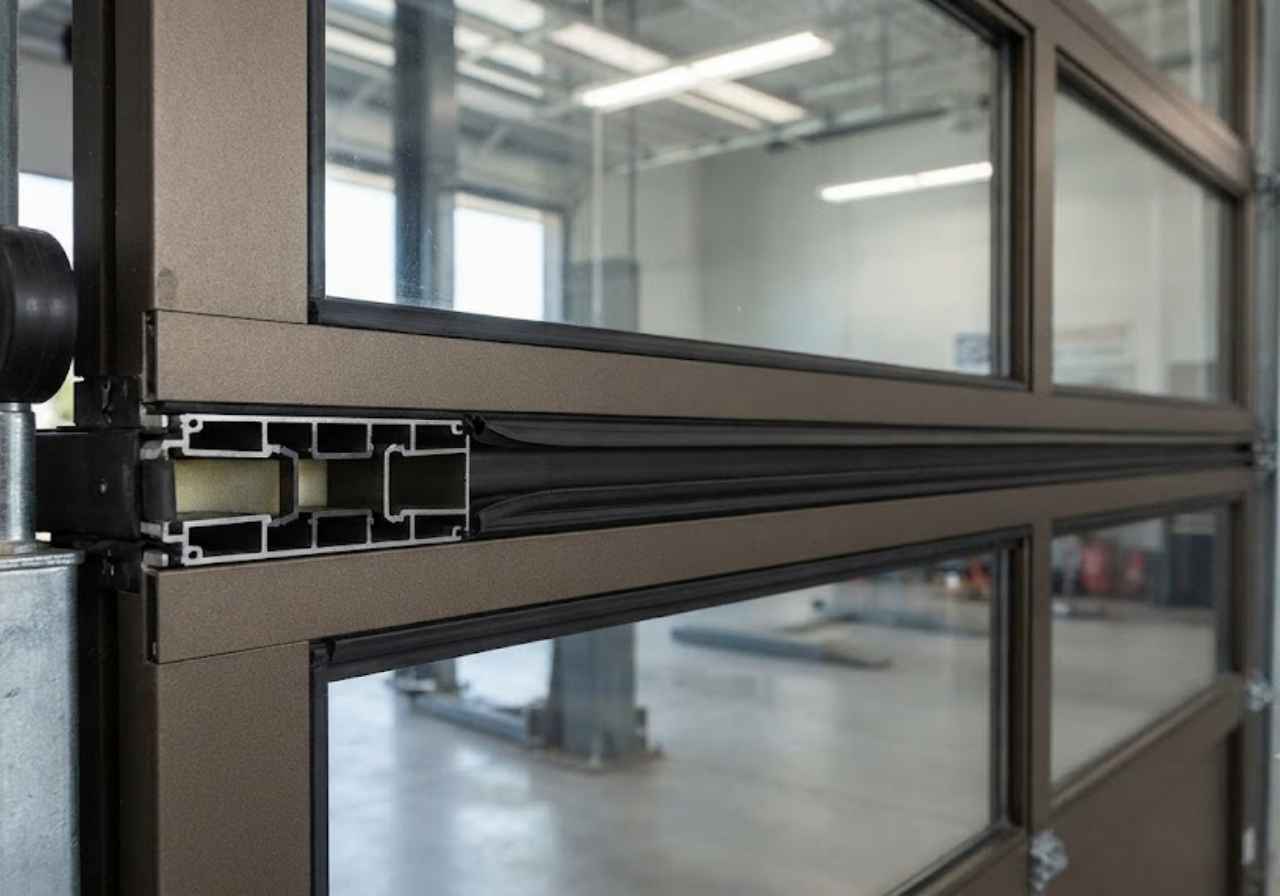

Yes. Service departments run far larger overhead doors than a typical warehouse dock to clear full-size trucks and SUVs, and sealing the gap where a large door meets the wall matters more here, since even a small gap adds up to meaningful air leakage across a dealership with eight or more bays.
Often yes. Many Denver dealerships use architectural metal roofing over the showroom for brand appearance and a heavier-duty membrane system over the service bay, where chemical resistance matters more than curb appeal. Spray foam applied to metal roofing performs consistently under either roof type since it seals directly to the deck.
In most cases, yes. Work is typically scheduled bay by bay or zone by zone so the department keeps operating, though a paint booth expansion or major structural change may need a shorter closure for that specific area.
Pricing varies significantly between the showroom and service bay scopes, and by how many bays and doors are involved. A walkthrough of both zones separately gives a far more accurate number than a single blended estimate.
What’s the Best Way to Insulate a Denver Car Dealership?
The best way to insulate a Denver car dealership is to treat the showroom and the service bay as two separate projects, not one insulation project in Denver. A showroom is built around glass, so its walls and roof need enough insulation to make up for what large windows can’t hold on their own. A service bay is built around ventilation and chemical exposure instead, since exhaust systems and floor-rated materials matter more there than appearance. Building code treats them differently too. A showroom usually falls under a mercantile occupancy, while the service department typically falls under a separate, moderate-hazard classification. Insulating both spaces the same way is the most common, and costliest, mistake in a Denver dealership project.
Key Takeaways
How Do You Insulate a Car Showroom in Denver?
A Denver dealership showroom behaves like a retail space wrapped around a product display. Floor-to-ceiling glass sells the vehicles. The walls and roof around that glass carry a heavier insulation load to compensate for what the glazing alone cannot hold. Closed-cell spray foam insulation holds up well against moisture and seals the small gaps around window and door framing that a showroom’s glass-heavy walls tend to have.
A service bay behaves like a light industrial building instead. Exhaust extraction, floor loading for lifts, and ventilation drive the design far more than appearance does. Most adopted mechanical codes call for six to ten air changes per hour in a working service bay, and that much air movement changes what insulation is actually solving for. A tight envelope keeps the HVAC and exhaust systems from fighting outside air leaking in around doors and wall penetrations. Still, no amount of wall insulation replaces a proper exhaust extraction system tied to each bay.
Which Insulation Materials Work Best for a Denver Dealership?
A dealership building genuinely splits into two insulation material decisions. The showroom needs something that supports the glazing and architectural finish. The service bay needs something that holds up to chemical exposure, vibration, and constant door cycling.
A fiberglass versus spray foam comparison for a Denver dealership usually settles quickly once the zones are separated out. Closed-cell foam earns its higher cost in the service bay and showroom because it insulates and air seals in one step. Standard batt insulation still performs well at a lower cost in parts storage and office areas, where chemical exposure and glazing loss aren’t part of the equation.
What Building and Fire Codes Apply to Denver Dealership Insulation?
Denver’s commercial energy code covers a dealership the same way it covers any commercial building. Still, a dealership is one of the few building types that fall under two occupancy classifications inside one structure. Understanding what R-value measures helps explain why a showroom’s glazing-heavy walls carry a different practical target than a service bay’s exhaust-driven envelope, even though both fall under the same code section on paper.
Spray foam counts as a combustible material under building code, and any exposed foam needs a proper thermal barrier in occupied areas of either zone. A contractor carrying current spray foam certifications recognized in Denver will plan that barrier correctly around lift bays and storage racks, where clearance needs differ from a typical office wall. Good ventilation during spray foam application keeps installation safe even in a service bay that’s still partially running during the work.
Avoiding a common and expensive spray foam mistake comes down to one thing in a dealership: matching material and barrier choices to the correct occupancy type before installation starts, not after an inspector flags it.
Our team at Grizzly Insulation CO starts a dealership project by walking the showroom and service bay separately. A single estimate covering both spaces the same way almost always misses something. A franchise brand’s design standards often dictate exterior finish choices too. Insulating an existing exterior wall system has to work within those constraints instead of against them. For dealerships adding a paint booth or expanding service capacity, our team coordinates directly with the fire marshal’s requirements before any spray foam goes in near that area.
Financing an insulation project across two building types can get complicated, since a showroom renovation and a service bay retrofit sometimes get budgeted separately even on the same property. Insulation financing in Denver can be structured around either scope, and current commercial rebates in Denver sometimes cover part of the cost for exactly this kind of project.
The Bottom Line for a Denver Dealership Insulation Project
A Denver dealership performs best when the showroom and service bay get scoped as two separate insulation projects that happen to share one roofline. Glass drives the showroom’s needs. Exhaust and chemical exposure drive the service bay’s needs. Denver’s climate pushes both decisions toward higher performance than a milder market would need, since the roof and walls on both sides of the building fight wide temperature swings for most of the year. Getting this split right the first time is what keeps technicians comfortable, utility costs down, and a fire inspection free of surprises.
Frequently Asked Questions
The paint booth itself is a manufactured, code-listed unit, but the walls and structure surrounding it fall under a stricter fire standard than the rest of the service department. Insulation and thermal barrier choices near that area need to account for those clearance and rating rules specifically.
Yes. Service departments run far larger overhead doors than a typical warehouse dock to clear full-size trucks and SUVs, and sealing the gap where a large door meets the wall matters more here, since even a small gap adds up to meaningful air leakage across a dealership with eight or more bays.
Often yes. Many Denver dealerships use architectural metal roofing over the showroom for brand appearance and a heavier-duty membrane system over the service bay, where chemical resistance matters more than curb appeal. Spray foam applied to metal roofing performs consistently under either roof type since it seals directly to the deck.
In most cases, yes. Work is typically scheduled bay by bay or zone by zone so the department keeps operating, though a paint booth expansion or major structural change may need a shorter closure for that specific area.
Pricing varies significantly between the showroom and service bay scopes, and by how many bays and doors are involved. A walkthrough of both zones separately gives a far more accurate number than a single blended estimate.
