Walk through the mechanical room of a Denver office building or the boiler room of an older apartment block, and you will often see gray insulation wrapped in shiny foil on the ducts, pipes, and walls. Homeowners spot the same material on supply shelves and wonder whether it belongs in their own walls, attic, or basement. Foil-faced mineral wool has a clear job, and it does that job very well, but it is not a general-purpose home insulation.
Foil-faced mineral wool is stone wool insulation with a facing of aluminum foil bonded to a fiberglass scrim and kraft paper, often called foil-scrim-kraft. The stone wool core resists heat and fire and soaks up sound, while the foil facing slows water vapor and protects the surface. It works best on heating and cooling ducts, on pipes and boilers, in mechanical rooms, and in commercial spaces where insulation stays exposed. In ordinary home walls and attics, unfaced or kraft-faced batts usually make more sense, since a foil layer on the wrong side of a Denver wall can trap moisture.
What Is Foil-faced Mineral Wool Insulation?
Mineral wool is spun from melted basalt rock and slag into dense fibers. It comes as batts, flexible blankets, and rigid boards, and it holds up to far higher heat than fiberglass. The foil facing is laminated to one side at the factory. As Johns Manville explains in its guide to insulation facings, foil-scrim-kraft acts as a vapor barrier for condensation control and a protective skin for the insulation, and it is most common on ductwork and equipment.
The facing has limits the core does not. Industrial suppliers such as McMaster-Carr list foil-faced insulation with facing temperature ratings far below those of the stone wool itself, so the foil always goes on the cooler side, away from the hot surface. Rigid foil-faced boards are also used around ovens and power equipment, where the dense core resists compression.
Where Foil-faced Mineral Wool Works Best
Foil-faced mineral wool earns its higher price in spaces where moisture, heat, and an exposed surface all matter at once.

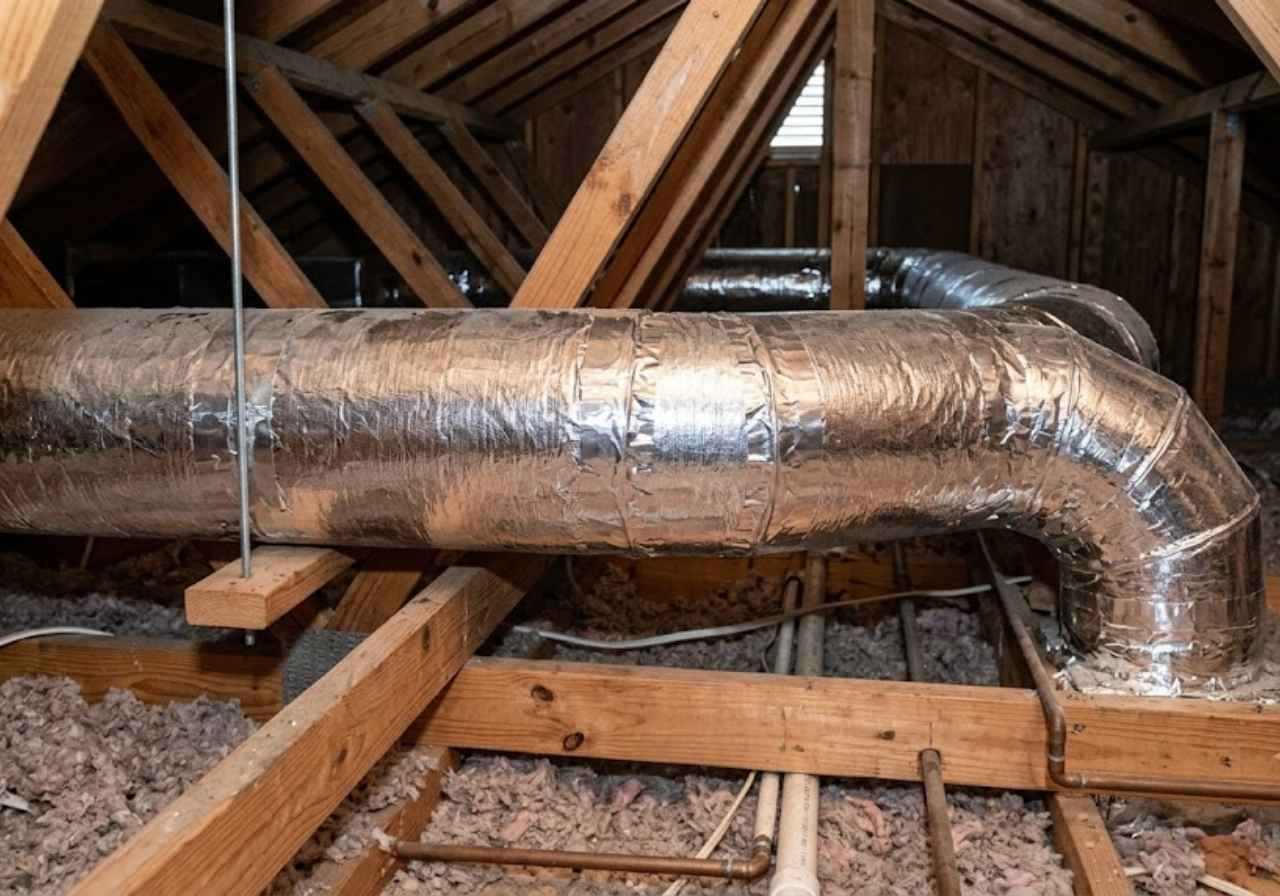

Heating and Cooling Ducts in Denver Attics and Garages
Cold air conditioning ducts running through a hot Denver attic in July can sweat, since warm attic air condenses on the cold metal. Foil-faced duct insulation keeps that moist air away from the duct and slows heat gain, so cool air reaches the rooms. Leaky, uninsulated ducts lengthen the average air conditioner run time in a Denver summer, and in winter the same ducts lose furnace heat before it reaches the living space.

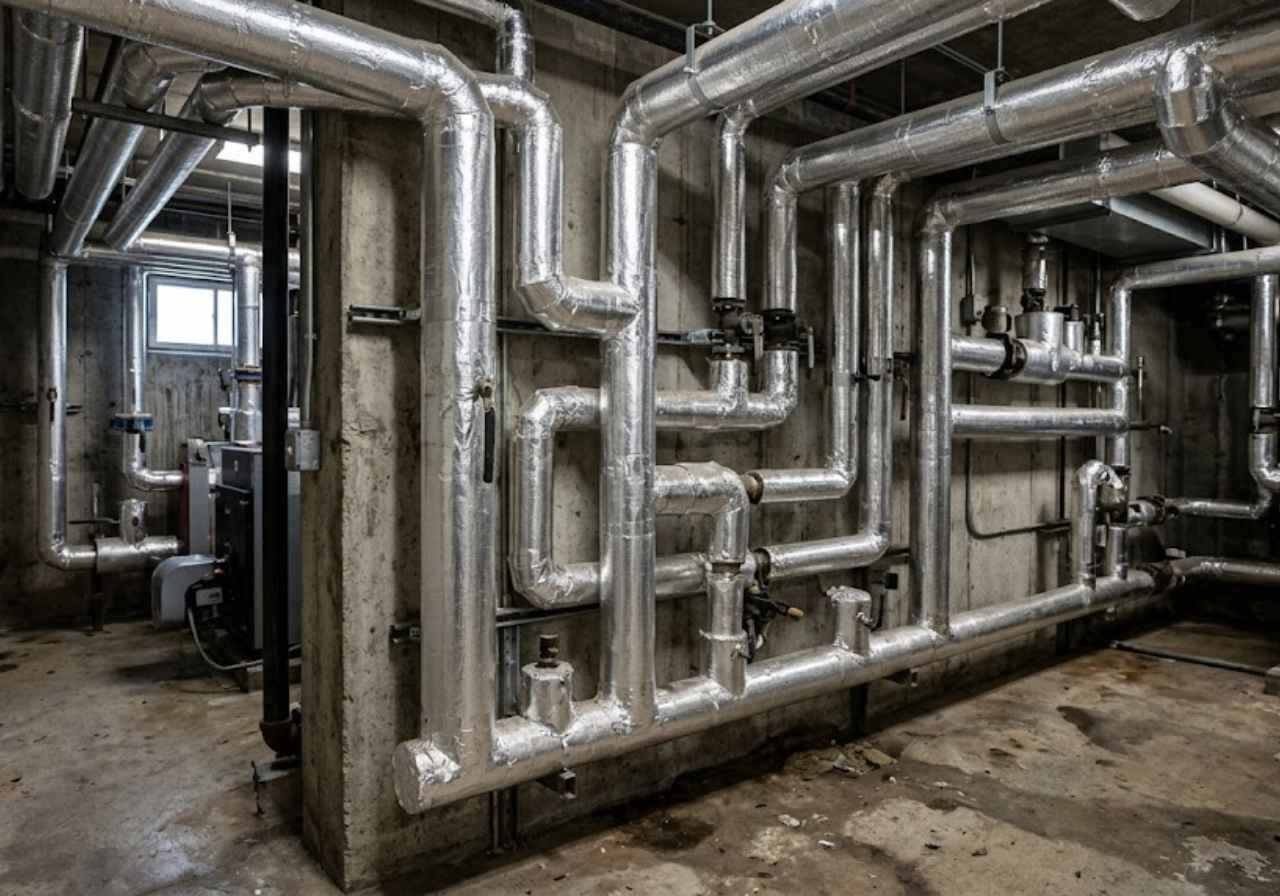

Pipes, Boilers, and Mechanical Rooms
Hot water and steam pipes lose heat fast when bare, and cold water lines can sweat or freeze in unheated spaces. Foil-faced mineral wool pipe wrap handles both, and its stone wool core tolerates the high surface temperatures of boiler piping. Installers seal the seams with matching foil tape, such as 3M foil-scrim-kraft facing tape, so the vapor barrier stays continuous along the full run.

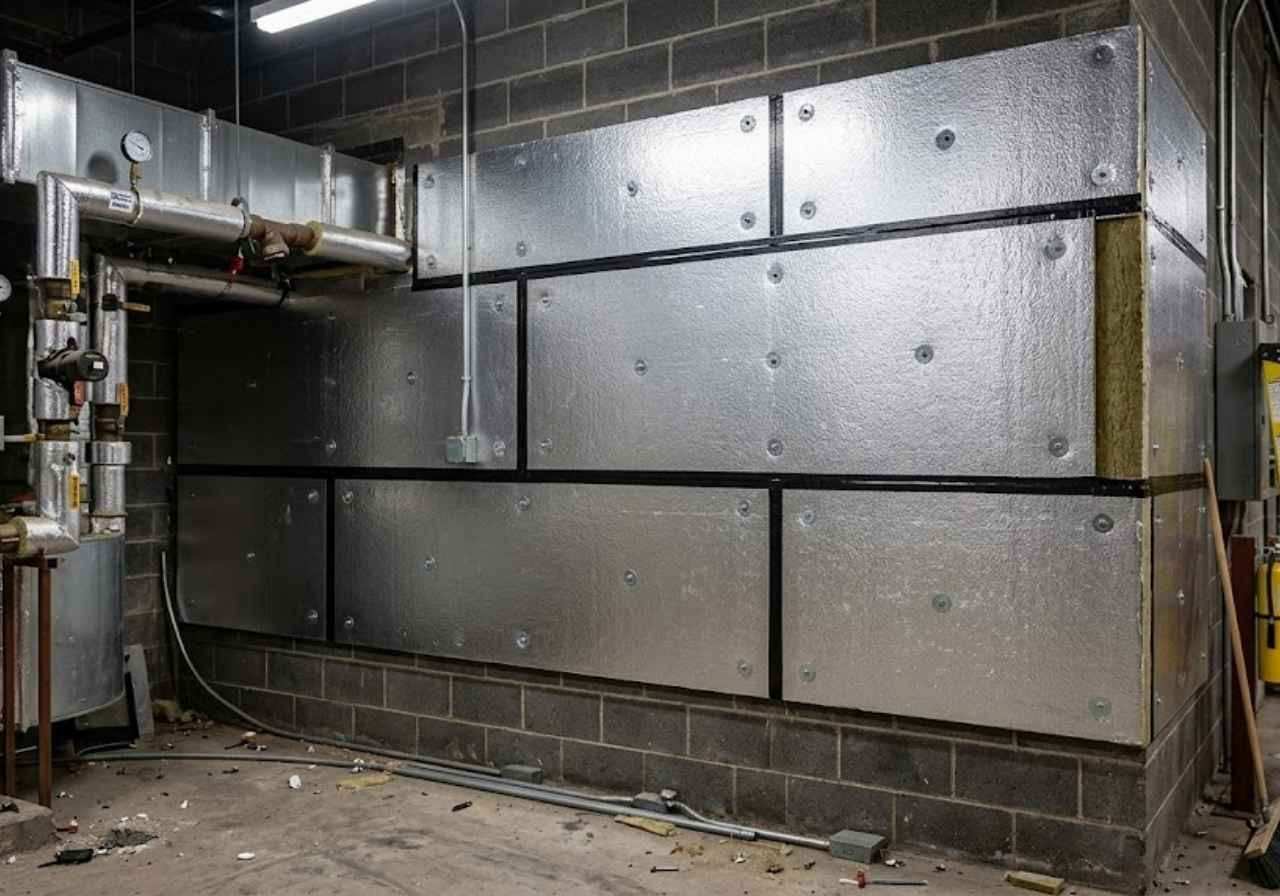

Exposed Walls and Ceilings in Commercial Buildings
In warehouses, shops, and mechanical rooms, insulation often stays uncovered. Foil-faced mineral wool boards give a clean, wipeable surface, resist fire, and soften the noise from equipment and machinery. Denver building owners use it on mechanical room walls, above open ceilings, and around equipment where a drywall cover is not practical, always within the fire ratings the product carries.
Foil-faced vs Unfaced Mineral Wool for Denver Projects
The choice between foil-faced and unfaced mineral wool depends mostly on whether the space needs a vapor barrier and whether the insulation will be covered.
Where Foil-faced Mineral Wool Is the Wrong Choice in Denver
A good product in the wrong place causes problems, and foil-faced mineral wool is no exception.
Inside Exterior Walls That Already Have a Vapor Layer
Most Denver exterior walls need one vapor retarder on the room side. Adding foil-faced insulation to a wall that already has kraft paper, plastic, or exterior foam can create a second barrier, and moisture that slips into the wall gets trapped between the two. That trapped moisture can rot framing and grow mold behind finished drywall. Plain mineral wool batts avoid that risk in ordinary walls.
As a Radiant Barrier Without an Air Gap
Shiny foil only reflects heat when it faces an open air space. Pressed against drywall or another surface, the foil adds almost nothing beyond its vapor control. The research on radiant barriers compared with attic insulation shows why foil alone rarely helps in a Denver attic, where depth of insulation matters far more. Use foil-faced mineral wool for its vapor control and fire resistance instead.
Fire and Sound Benefits of Mineral Wool in Denver Buildings
Mineral wool will not burn and keeps its shape at temperatures well above what melts fiberglass, which is why it shows up near furnaces, boilers, and garage walls. Learning whether fiberglass insulation is flammable compared with mineral wool helps explain the price difference. For walls between a garage and the house, garage insulation choices in Denver often favor mineral wool batts.
How Grizzly Insulation CO Uses Mineral Wool in Denver

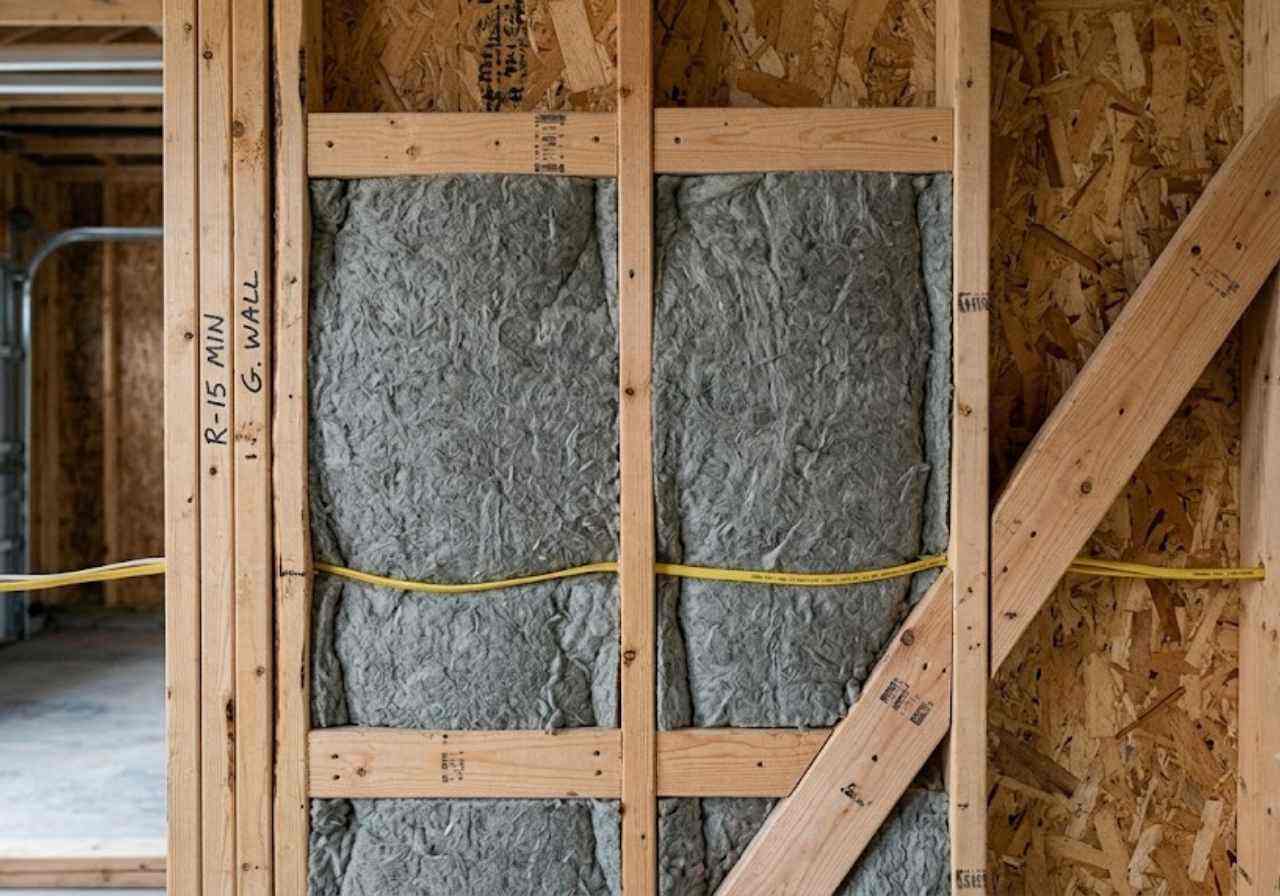

Grizzly Insulation CO installs mineral wool batt insulation for Denver walls as well as fiberglass, cut to fit and seated against the framing with no gaps or compression. Our team recommends the right batt for each space, and mineral wool is often the pick for walls near a garage or for quieter rooms between floors.
For shops, warehouses, and offices, Grizzly Insulation CO provides commercial spray foam and fiberglass insulation systems in Denver. Foil-faced duct and pipe wrap is usually installed by a heating and cooling contractor, so Grizzly Insulation CO focuses on the building insulation around those systems.
Conclusion
Foil-faced mineral wool pairs a fire-resistant, sound-absorbing stone wool core with a foil-scrim-kraft facing that blocks vapor and protects the surface. Use it on air conditioning ducts in hot attics and garages, on pipes and boilers, and on exposed walls and ceilings in mechanical rooms and commercial spaces. Skip it inside ordinary Denver walls that already have a vapor layer, and do not count on the foil as a radiant barrier unless it faces an open air gap. For most home walls and floors, unfaced or kraft-faced mineral wool batts and ceiling insulation options for Denver homes do the job with less risk.
Some foil-faced products are rated for exposed use, and the label will say so. Check the fire rating and the maker’s instructions before leaving it uncovered in a living space. In a finished basement, drywall over plain mineral wool batts is usually the simpler choice.
The stone wool core faces the hot surface, and the foil facing goes on the cooler side. The facing has a much lower temperature limit than the core, so placing it against a hot pipe or boiler can damage it.
It can control vapor, but basement walls usually work better with foam board or closed-cell spray foam against the concrete. Foil on the wrong side of a basement wall can trap moisture, so plan the whole wall before choosing a faced product.
The stone wool core absorbs sound well, but the foil adds little for sound inside a wall. Unfaced mineral wool batts with resilient channel and extra drywall give a better result for a home theater, at a lower cost. Seal outlet boxes and the gaps around the edges for the full benefit.
Both use the same kind of foil facing, but the core differs. Mineral wool handles much higher temperatures, resists fire better, and is denser for sound. Fiberglass costs less and is common on ordinary heating and cooling ducts. For boiler rooms and very hot pipes, mineral wool is the safer pick.
Foil-faced Mineral Wool Insulation: What It Is & Where It Works Best
Walk through the mechanical room of a Denver office building or the boiler room of an older apartment block, and you will often see gray insulation wrapped in shiny foil on the ducts, pipes, and walls. Homeowners spot the same material on supply shelves and wonder whether it belongs in their own walls, attic, or basement. Foil-faced mineral wool has a clear job, and it does that job very well, but it is not a general-purpose home insulation.
Foil-faced mineral wool is stone wool insulation with a facing of aluminum foil bonded to a fiberglass scrim and kraft paper, often called foil-scrim-kraft. The stone wool core resists heat and fire and soaks up sound, while the foil facing slows water vapor and protects the surface. It works best on heating and cooling ducts, on pipes and boilers, in mechanical rooms, and in commercial spaces where insulation stays exposed. In ordinary home walls and attics, unfaced or kraft-faced batts usually make more sense, since a foil layer on the wrong side of a Denver wall can trap moisture.
What Is Foil-faced Mineral Wool Insulation?
Mineral wool is spun from melted basalt rock and slag into dense fibers. It comes as batts, flexible blankets, and rigid boards, and it holds up to far higher heat than fiberglass. The foil facing is laminated to one side at the factory. As Johns Manville explains in its guide to insulation facings, foil-scrim-kraft acts as a vapor barrier for condensation control and a protective skin for the insulation, and it is most common on ductwork and equipment.
The facing has limits the core does not. Industrial suppliers such as McMaster-Carr list foil-faced insulation with facing temperature ratings far below those of the stone wool itself, so the foil always goes on the cooler side, away from the hot surface. Rigid foil-faced boards are also used around ovens and power equipment, where the dense core resists compression.
Where Foil-faced Mineral Wool Works Best
Foil-faced mineral wool earns its higher price in spaces where moisture, heat, and an exposed surface all matter at once.
Heating and Cooling Ducts in Denver Attics and Garages
Cold air conditioning ducts running through a hot Denver attic in July can sweat, since warm attic air condenses on the cold metal. Foil-faced duct insulation keeps that moist air away from the duct and slows heat gain, so cool air reaches the rooms. Leaky, uninsulated ducts lengthen the average air conditioner run time in a Denver summer, and in winter the same ducts lose furnace heat before it reaches the living space.
Pipes, Boilers, and Mechanical Rooms
Hot water and steam pipes lose heat fast when bare, and cold water lines can sweat or freeze in unheated spaces. Foil-faced mineral wool pipe wrap handles both, and its stone wool core tolerates the high surface temperatures of boiler piping. Installers seal the seams with matching foil tape, such as 3M foil-scrim-kraft facing tape, so the vapor barrier stays continuous along the full run.
Exposed Walls and Ceilings in Commercial Buildings
In warehouses, shops, and mechanical rooms, insulation often stays uncovered. Foil-faced mineral wool boards give a clean, wipeable surface, resist fire, and soften the noise from equipment and machinery. Denver building owners use it on mechanical room walls, above open ceilings, and around equipment where a drywall cover is not practical, always within the fire ratings the product carries.
Foil-faced vs Unfaced Mineral Wool for Denver Projects
The choice between foil-faced and unfaced mineral wool depends mostly on whether the space needs a vapor barrier and whether the insulation will be covered.
Choosing between faced and unfaced insulation for Denver walls follows the same rule here: use one vapor layer, on the warm side, and nowhere else.
Where Foil-faced Mineral Wool Is the Wrong Choice in Denver
A good product in the wrong place causes problems, and foil-faced mineral wool is no exception.
Inside Exterior Walls That Already Have a Vapor Layer
Most Denver exterior walls need one vapor retarder on the room side. Adding foil-faced insulation to a wall that already has kraft paper, plastic, or exterior foam can create a second barrier, and moisture that slips into the wall gets trapped between the two. That trapped moisture can rot framing and grow mold behind finished drywall. Plain mineral wool batts avoid that risk in ordinary walls.
As a Radiant Barrier Without an Air Gap
Shiny foil only reflects heat when it faces an open air space. Pressed against drywall or another surface, the foil adds almost nothing beyond its vapor control. The research on radiant barriers compared with attic insulation shows why foil alone rarely helps in a Denver attic, where depth of insulation matters far more. Use foil-faced mineral wool for its vapor control and fire resistance instead.
Fire and Sound Benefits of Mineral Wool in Denver Buildings
Mineral wool will not burn and keeps its shape at temperatures well above what melts fiberglass, which is why it shows up near furnaces, boilers, and garage walls. Learning whether fiberglass insulation is flammable compared with mineral wool helps explain the price difference. For walls between a garage and the house, garage insulation choices in Denver often favor mineral wool batts.
Its density also makes it one of the better sound absorbers, so rooms built around noisy equipment get quieter. The same principle explains how insulation helps with sound in Denver homes, and denser batts such as R-15 mineral wool compared with R-13 fiberglass edge ahead for both sound and fit.
Comfort improves along with the savings. Insulated ducts and pipes cut wasted energy, which shows up on the bill, and high energy bills tied to attic insulation often improve once ducts in the attic are wrapped. Hot upstairs rooms in Denver summers are another common payoff.
How Grizzly Insulation CO Uses Mineral Wool in Denver
Grizzly Insulation CO installs mineral wool batt insulation for Denver walls as well as fiberglass, cut to fit and seated against the framing with no gaps or compression. Our team recommends the right batt for each space, and mineral wool is often the pick for walls near a garage or for quieter rooms between floors.
For shops, warehouses, and offices, Grizzly Insulation CO provides commercial spray foam and fiberglass insulation systems in Denver. Foil-faced duct and pipe wrap is usually installed by a heating and cooling contractor, so Grizzly Insulation CO focuses on the building insulation around those systems.
Conclusion
Foil-faced mineral wool pairs a fire-resistant, sound-absorbing stone wool core with a foil-scrim-kraft facing that blocks vapor and protects the surface. Use it on air conditioning ducts in hot attics and garages, on pipes and boilers, and on exposed walls and ceilings in mechanical rooms and commercial spaces. Skip it inside ordinary Denver walls that already have a vapor layer, and do not count on the foil as a radiant barrier unless it faces an open air gap. For most home walls and floors, unfaced or kraft-faced mineral wool batts and ceiling insulation options for Denver homes do the job with less risk.
Frequently Asked Questions
Some foil-faced products are rated for exposed use, and the label will say so. Check the fire rating and the maker’s instructions before leaving it uncovered in a living space. In a finished basement, drywall over plain mineral wool batts is usually the simpler choice.
The stone wool core faces the hot surface, and the foil facing goes on the cooler side. The facing has a much lower temperature limit than the core, so placing it against a hot pipe or boiler can damage it.
It can control vapor, but basement walls usually work better with foam board or closed-cell spray foam against the concrete. Foil on the wrong side of a basement wall can trap moisture, so plan the whole wall before choosing a faced product.
The stone wool core absorbs sound well, but the foil adds little for sound inside a wall. Unfaced mineral wool batts with resilient channel and extra drywall give a better result for a home theater, at a lower cost. Seal outlet boxes and the gaps around the edges for the full benefit.
Both use the same kind of foil facing, but the core differs. Mineral wool handles much higher temperatures, resists fire better, and is denser for sound. Fiberglass costs less and is common on ordinary heating and cooling ducts. For boiler rooms and very hot pipes, mineral wool is the safer pick.
