What Fire Rating Do Denver Hospital Walls Need to Meet?
Denver hospital walls carry different fire ratings based on their job in the building. Smoke barriers need a minimum one-hour fire rating. Every floor must be split into smoke compartments. Corridor walls, fire partitions, and fire barriers each carry their own rating under the same code chapter. No single number covers every wall in a Denver hospital. The rating always depends on the job that wall is doing.
How Denver Hospitals Divide Each Floor Into Smoke Compartments
A hospital cannot evacuate downstairs the way an office building can. Patients on ventilators or in recovery often cannot move at all. Denver hospitals plan around this reality with a strategy called defend-in-place. Staff move patients sideways into an adjacent smoke compartment instead of down a stairwell. That sideways move only works if the wall between compartments actually holds back smoke. Smoke barriers need a continuous membrane through every concealed space above the ceiling, not just the visible wall surface. A gap above a drop ceiling defeats the entire strategy, even if the wall below looks solid.
What Separates a Smoke Barrier From a Fire Partition in Denver
Denver hospital construction uses four distinct wall types under the same code chapter. Each one carries its own rating and its own job. Confusing one for another is one of the most common mistakes on a Denver healthcare project.
1. Fire Walls Create Structurally Independent Buildings
A fire wall separates what code treats as two entirely separate buildings under one roof. It has to stand on its own. Even if everything on one side falls during a fire, the wall stays up. Few Denver hospital interior walls actually qualify as fire walls. This rating is kept for an actual building-to-building split, not a room-to-room one.
2. Fire Barriers Divide Areas Within One Building
A fire barrier separates parts inside the same hospital building. A surgical wing and an administrative wing are a good example. It has to run from one rated floor up to the next rated floor above it. A fire barrier at the same rating as a fire wall still cannot substitute for one.
3. Fire Partitions Separate Patient Rooms and Corridors
A fire partition separates smaller spaces like patient rooms from hallways. Unlike a fire barrier, a fire partition can stop at a rated ceiling instead of running all the way to the roof deck. That difference matters for cost and schedule on a Denver hospital renovation. A fire partition needs less material and less coordination with the floor above.
4. Smoke Barriers Limit Smoke Travel Between Compartments
A smoke barrier is the wall type behind the defend-in-place strategy covered above. It needs a minimum one-hour rating. It also needs a continuous membrane through every concealed space. Openings in a smoke barrier need smoke-rated door assemblies, not standard doors. This is the wall type most directly tied to patient safety during an actual fire event in a Denver hospital.
Why Every Denver Hospital Wall Needs Penetration Firestopping
Pipes, conduit, and cables punch through fire-rated hospital walls constantly. Each one of those gaps needs a listed firestop system, tested to match the wall it passes through. One unsealed gap can undo the fire rating of a whole wall. Our team at Grizzly Insulation Co treats gap sealing as part of the same scope as the insulation itself on any commercial project in the Denver metro.
Comparing Insulation Materials for Denver Hospital Wall Assemblies
Material choice inside a Denver hospital wall depends on which of the four wall types it belongs to.
A Denver hospital fiberglass versus spray foam comparison usually comes down to one question. Which side of the wall faces outside? Denver closed-cell foam resistance to moisture matters on any exterior wall behind a rated wall. A hospital runs its HVAC system nonstop. It cannot handle a moisture problem building up behind a finished wall. Fiberglass batt used in fire partitions comes with a flammability rating worth checking against the specific wall it’s going into.

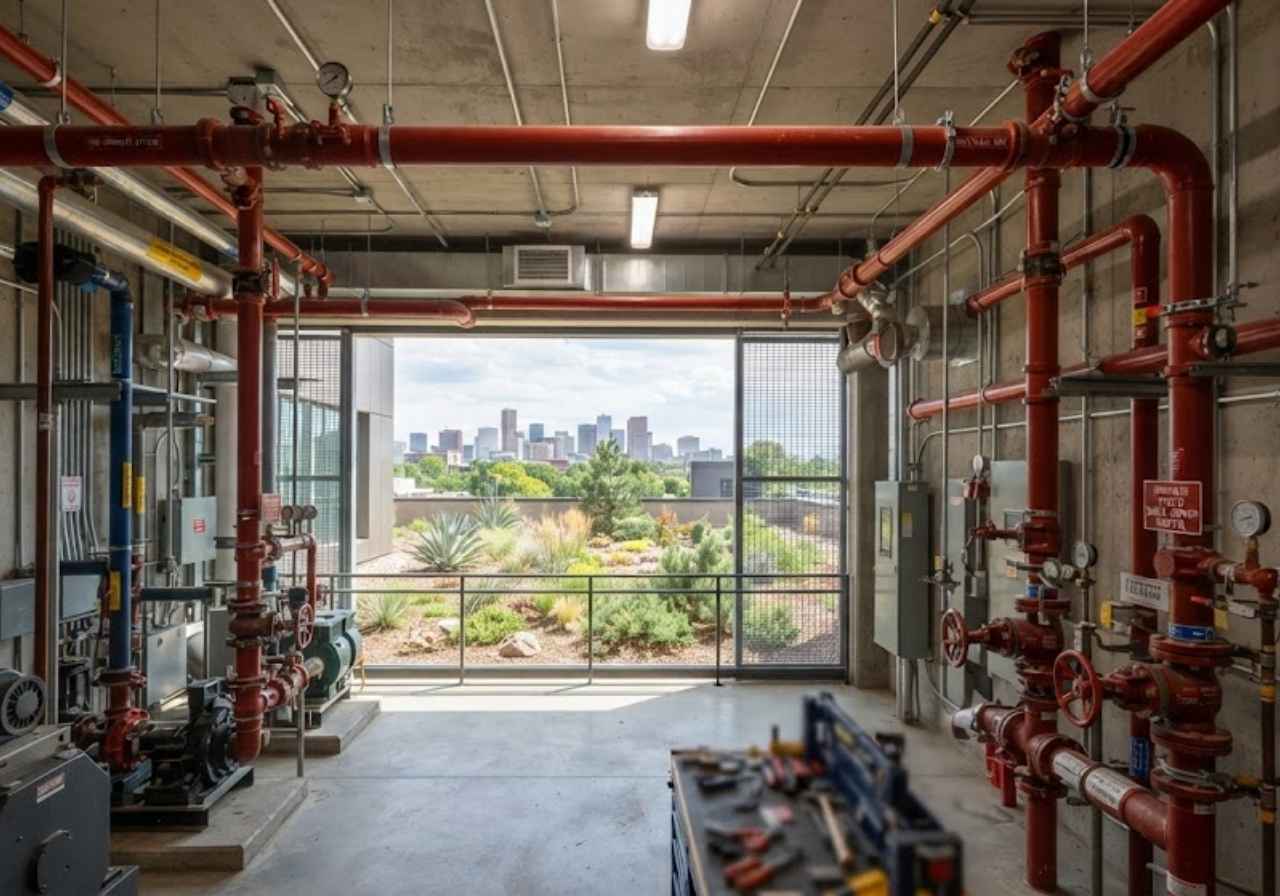

Why Denver Hospitals Can No Longer Be Built Without Sprinklers
Current code no longer lets a hospital go up without sprinklers. Every part of the building needs them now. That single rule changes how fire-rated walls get checked during design. A sprinklered building sometimes gets a lower rating on certain wall types. This applies compared to the same wall in a building with no sprinklers. What R-value means for a Denver hospital envelope still matters separately from this fire discussion. A hospital’s thermal performance and its fire rating get evaluated against entirely different code sections, even on the same physical wall.
For a Denver hospital weighing work, reasons a building might need to reinsulate in Denver often turn up only once a fire marshal walks the space. Good ventilation practices during spray foam application matter more here than in most other buildings. Patient areas nearby cannot handle the same disruption an empty office building could take during work. Financing options for larger Denver commercial projects help spread that cost across a healthcare renovation timeline.
Conclusion
A Denver hospital doesn’t answer to one fire rating. It answers to four, each doing a different job inside the same building. A fire wall protects against total building loss. A fire barrier protects one wing from a fire starting in another. A fire partition protects a patient room from a hallway. A smoke barrier protects the compartment a patient gets moved into when they cannot evacuate at all. Confusing these four ratings during a renovation creates a gap that only shows up when it matters most, during an actual emergency rather than a routine inspection. Getting the wall type right before construction starts protects patients in a way no amount of correction after the fact can fully replace.
Frequently Asked Questions
A smoke barrier needs a minimum one-hour fire rating. It also needs a solid membrane through every hidden space, including the area above a drop ceiling.
IBC code generally caps a smoke compartment at 22,500 square feet. Some sprinklered buildings with single-patient rooms may qualify for larger compartments under separate life safety code provisions.
Not automatically. A fire barrier needs to run up to a rated floor above it. A fire partition can stop at a rated ceiling instead. The same rating doesn’t make the two interchangeable.
Yes, under the current code. A hospital occupancy can no longer skip sprinklers anywhere in the building.
