A remodeler who opens the exterior walls of a 1990s Denver two-story often finds old R-19 batts, slumped and squeezed into 2×6 framing. The obvious fix seems to be more R-19. Then the supplier’s shelf shows R-21 batts that look thinner but carry a higher number. R-21 insulation is 5.5 inches thick, which matches the depth of a 2×6 wall cavity. It is a high-density fiberglass batt, packed with more fibers per inch, so it reaches R-21 without being squeezed. A standard R-19 batt is about 6.25 inches thick and drops to about R-18 when it is pressed into the same wall. R-21 fills the cavity edge to edge, stays in place, and delivers its full rating.
R-21 is not the right batt insulation for every space. It costs more than R-19, it fits only 2×6 framing, and new walls still need exterior foam under today’s code. The sections below cover the thickness math, how R-21 compares with other options, and where it earns its place.
Key Takeaways on R-21 Insulation for Denver Walls
R-21 batt insulation is 5.5 inches thick, made to fill a 2×6 wall without compression.
A compressed R-19 batt gives about R-18 in the same wall, so R-21 adds about three points.
Under the 2021 energy code, R-21 covers the cavity part of the R-20 plus R-5 wall option.
Use kraft-faced R-21 when it is the only vapor retarder, and unfaced R-21 behind exterior foam.
How Thick Is R-21 Insulation and Why Does It Fit 2x6 Walls?
A 2×6 stud measures 5.5 inches deep, and R-21 batts are made at that exact thickness. The extra R-value comes from density. Makers pack more glass fibers into each inch, which traps more still air and slows heat flow. That works out to about R-3.8 per inch, compared with about R-3 per inch for a standard R-19 batt.
Fit matters as much as the number. Because R-21 matches the cavity, it does not bulge against the drywall or leave a gap at the back of the wall. An Owens Corning data sheet for its R-21 batt states that it delivers 19 percent more R-value than an R-19 batt compressed into a 2×6 wall. The denser batt is also stiffer, so it stands in the cavity without sagging at the top. R-21 is a 2×6 product only. In a 2×4 wall, R-15 batts for 2×4 walls in Denver do the same job in 3.5 inches.
R-21 Versus R-19 and Other Options for 2x6 Walls
R-21 is one of several ways to fill a 2×6 wall. The table compares the common choices on thickness, rating, and best use.
Option
Thickness
Rating in a 2×6 wall
Best use
R-19 fiberglass
6.25 inches
About R-18
Budget walls, floors
R-21 high-density fiberglass
5.5 inches
R-21
Exterior 2×6 walls
R-23 mineral wool
5.5 inches
R-23
Fire and sound control
Open-cell spray foam
Full cavity
About R-20
Air sealing in one step
Closed-cell foam plus batt
2 inches foam, then batt
About R-25 or more
Leaky or damp walls
R-19 still makes sense under floors, where joist cavities are deeper. In walls, R-21 gives about three more points for a modest bump in material cost. A flash-and-batt hybrid insulation goes further by sealing the wall with a thin foam layer before the batt goes in. For walls that stay closed, the better comparison is injection foam versus spray foam insulation, since batts need open studs.
R-21 earns its higher price in walls that face the outdoors and are open for work. It makes less sense where a cheaper batt does the same job or where the cavity is a different size. Two situations come up most often.
Exterior 2x6 Walls in New Homes and Additions
New homes and additions with 2×6 framing are the main use for R-21. The batt fills the cavity, and the code-required foam board goes on the outside. Together, the two layers slow heat flow through the studs as well as the cavities. Corners and the areas around windows deserve extra care, and the same rules for wall insulation in cold climates apply at those trouble spots.

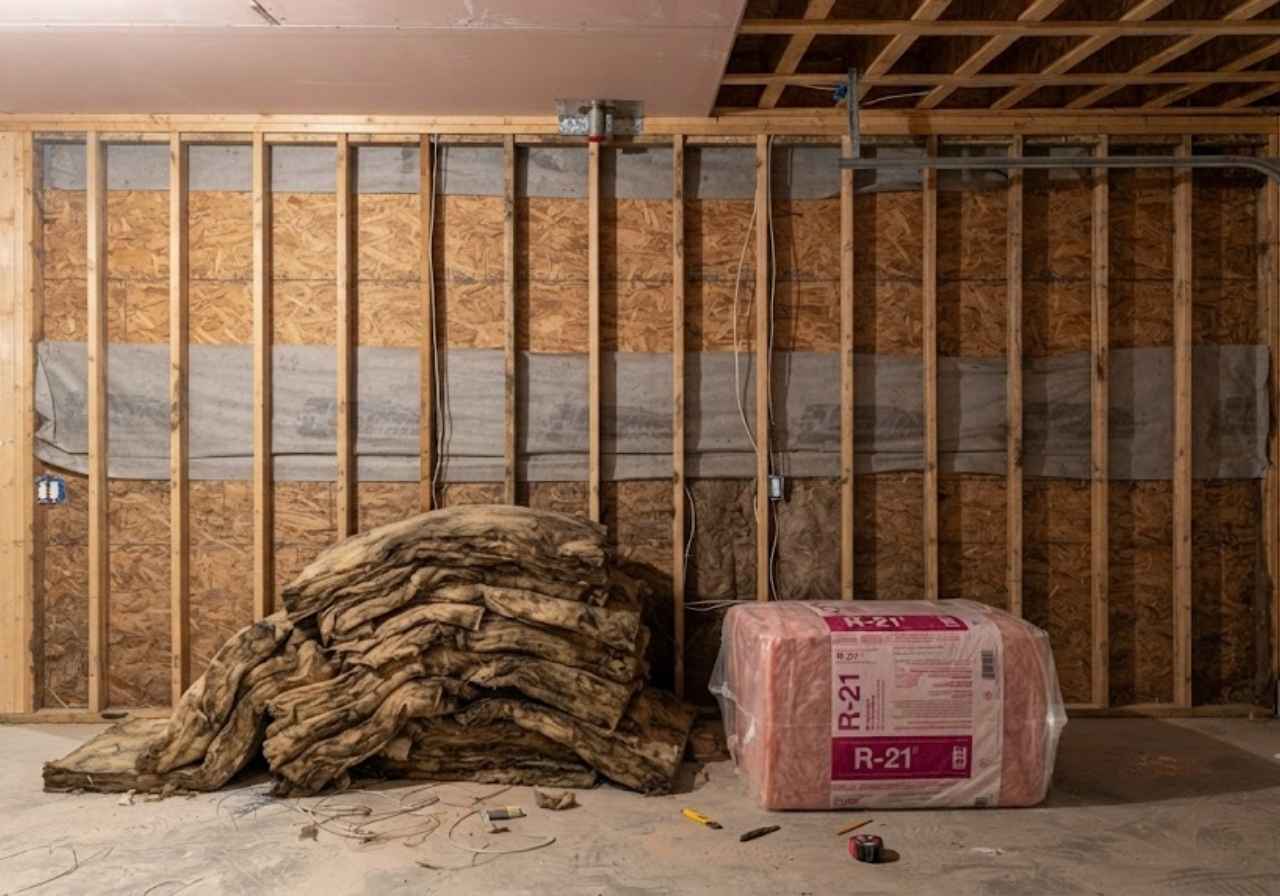

Exterior Walls Opened During a Remodel
A remodel that removes drywall gives a rare chance to upgrade the walls. Pulling out old, slumped R-19 and fitting R-21 adds R-value without changing the wall depth. Seal the gaps around outlets, pipes, and the top plate before the batts go in. Homes that need this work often show signs of poor insulation in Denver, such as cold exterior walls and drafts near outlets. When the walls cannot be opened, injection foam installation can fill closed cavities instead.
Faced or Unfaced R-21 in Denver Exterior Walls
R-21 comes kraft-faced or unfaced, and the right choice depends on what else is in the wall. Denver sits in climate zone 5, where the International Residential Code calls for a vapor retarder on the inside of most exterior frame walls. Kraft paper meets that rule on its own. The basics of faced and unfaced insulation stay the same here: one vapor layer, placed on the warm side.

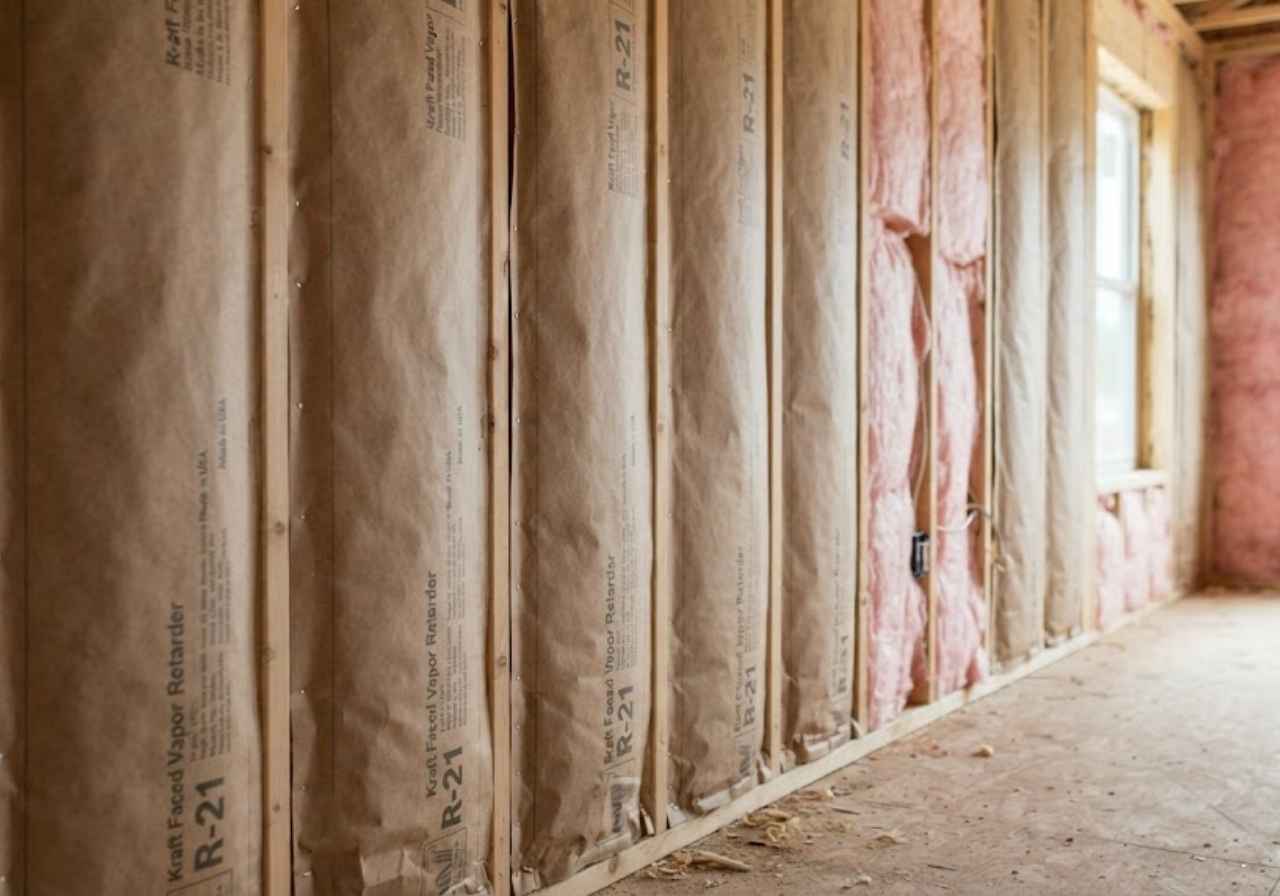

Kraft-Faced R-21 When It Is the Only Vapor Retarder
In a wall with no exterior foam or interior membrane, kraft-faced R-21 is the simple choice. The paper faces the room, and the flanges staple to the front of the studs. Kraft paper burns, so it must sit behind drywall and never stay exposed.

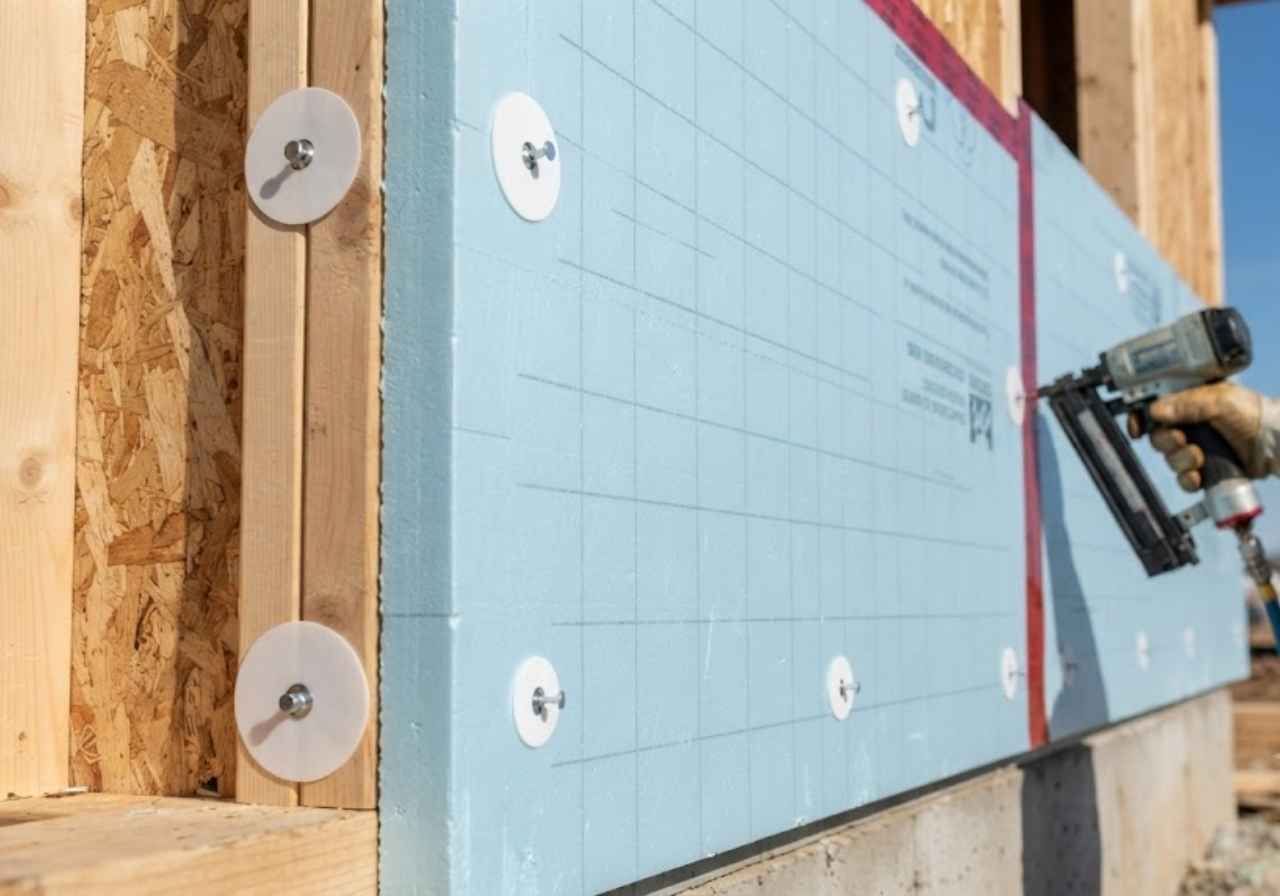

Unfaced R-21 Behind Exterior Foam Board
Walls with enough foam on the outside can use a lighter vapor retarder inside. Building America guidance from the Pacific Northwest National Laboratory shows a 2×6 wall in climate zone 5B with R-7.5 of exterior foam and latex paint as the vapor retarder. In that wall, unfaced R-21 avoids trapping moisture between two vapor layers. Unfaced batts also suit interior walls.
Does R-21 Meet Denver's 2021 Energy Code for Walls?
Denver adopted the 2021 International Energy Conservation Code in 2023. For climate zone 5, its prescriptive wall options are R-20 plus R-5 continuous, R-13 plus R-10, or R-15 continuous alone. R-21 covers the cavity part of the first option, so a new wall still needs R-5 of foam on the outside. Under the older 2018 code, R-20 in the cavity could pass on its own, which is one reason R-21 became a local favorite. Existing homes do not have to meet the new values unless the walls are part of a permitted project.
Better walls help in every season. In winter, R-21 slows heat loss through the largest surface of the house. In summer, walls that keep outdoor heat out as well as cold ease the load on the air conditioning, which helps with air conditioning that runs all day and shortens average air conditioner run times in Denver. The denser fibers also cut a little more street noise than standard batts. Denver’s sunny days and cold nights put walls through wide swings, and a batt insulation that does not settle keeps working for decades.
Grizzly Insulation CO measures every wall cavity before choosing a batt, since R-21 pays off only in full 2×6 framing. Our team seals the top plate, outlets, and pipe holes first, then fits each batt edge to edge with no gaps or crushed corners. On the same visit, we can handle attic air sealing in Denver, where most heat escapes.
Grizzly Insulation CO offers batt insulation in Denver for walls, floors, and ceilings, in faced and unfaced styles. We confirm which vapor approach your wall needs before we start. The result is insulation that puts you back in control of drafts and bills. Our team is Building Performance Institute certified and insured.
Conclusion
R-21 insulation is 5.5 inches thick, the exact depth of a 2×6 wall. Its higher density lets it reach R-21 without compression, while a squeezed R-19 batt gives about R-18. That makes R-21 the better pick for exterior 2×6 walls in new homes, additions, and remodels with open walls. New walls still need exterior foam under the 2021 code, and the facing should match the rest of the wall.
For exterior 2×6 walls, usually yes. It adds about three points of R-value in the same space and does not sag or bulge. For floors with deeper joists, R-19 or R-30 is often the better buy.
It can work between 2×6 joists, but most floors and ceilings have deeper framing. Thicker batts or blown insulation fill those spaces better and cost less per point of R-value.
Most exterior walls here need a vapor retarder on the room side, and kraft-faced R-21 provides one. Walls with enough exterior foam can use unfaced R-21 with vapor retarder paint. Grizzly Insulation CO can confirm which approach fits your wall.

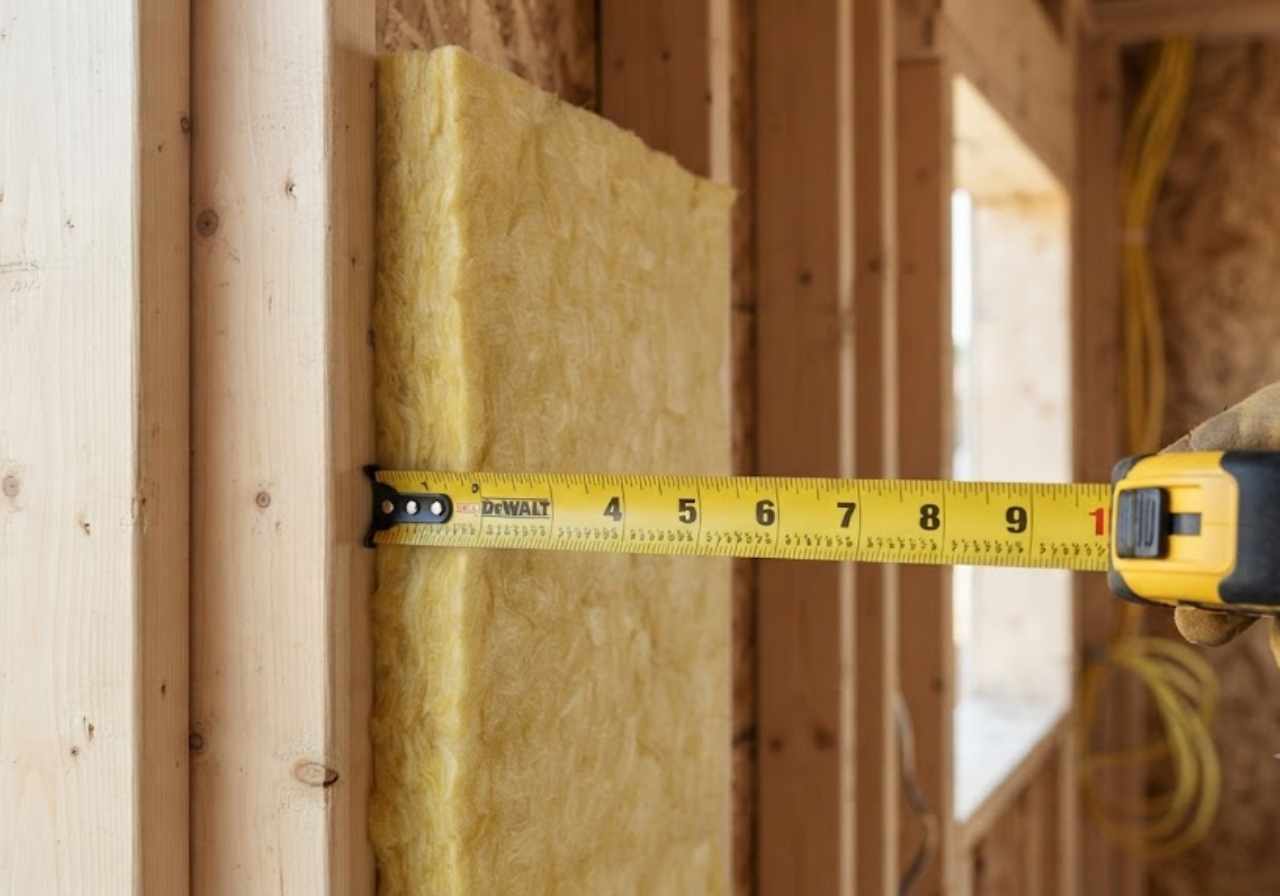

Measure the batt. R-21 sits flush with a 2×6 stud at 5.5 inches, while R-19 is thicker and bulges when compressed. The printed label on the facing, if there is one, also lists the R-value.
