A Denver surgical center needs HVAC-focused insulation because the mechanical system inside an operating room follows rules a standard office building never faces. ASHRAE 170 requires a minimum of 20 total air changes per hour in an operating room, with at least four of those changes bringing in outdoor air. The room also needs constant positive pressure. Temperature and humidity cannot drift far. None of that happens on its own. The building envelope around the operating room has to support a system running harder and more precisely than a typical commercial HVAC unit ever does. Denver’s climate makes that job harder still than a steadier climate would.
Denver operating rooms don’t just need clean air. They need that air held to a specific range continuously, every hour of every day the room is in use. Design temperature typically runs between 68 and 75 degrees Fahrenheit, with relative humidity held between 20 and 60 percent. A drift outside either range risks surgical site infection, not just occupant comfort. The mechanical system carries the direct responsibility for holding these numbers, but the building envelope decides how much work that system has to do to get there and keep it.
Why Denver's Dry Climate Makes Humidity Control Harder
A common assumption trips up Denver facility planners early. Low outdoor humidity sounds like an advantage here. It should make a 20 to 60 percent indoor target easy to hit. It doesn’t work that way in practice, though. Dry outside air pulled in through a leaky envelope can drag indoor humidity below the minimum. Humid air pushes it too high somewhere else just as easily. Spray foam’s effect on indoor humidity control matters more in a Denver surgical center than in most other commercial buildings. Humidification equipment fighting outside air infiltration has almost no room for error.
Three Places Envelope Gaps Undermine an Operating Room's HVAC System
A surgical center’s mechanical engineer builds the HVAC system around a sealed envelope. A gap that shows up later pushes that system off its plan.
1. Roof Deck Heat Gain Fighting Positive Pressure
A poorly insulated roof over an operating room lets in more heat during a Denver summer afternoon than the system was sized to remove quickly. The system still has to hold positive pressure and temperature at the same time. It compensates by running harder instead of failing outright. Energy use climbs in a way that often goes unnoticed until the utility bill arrives.

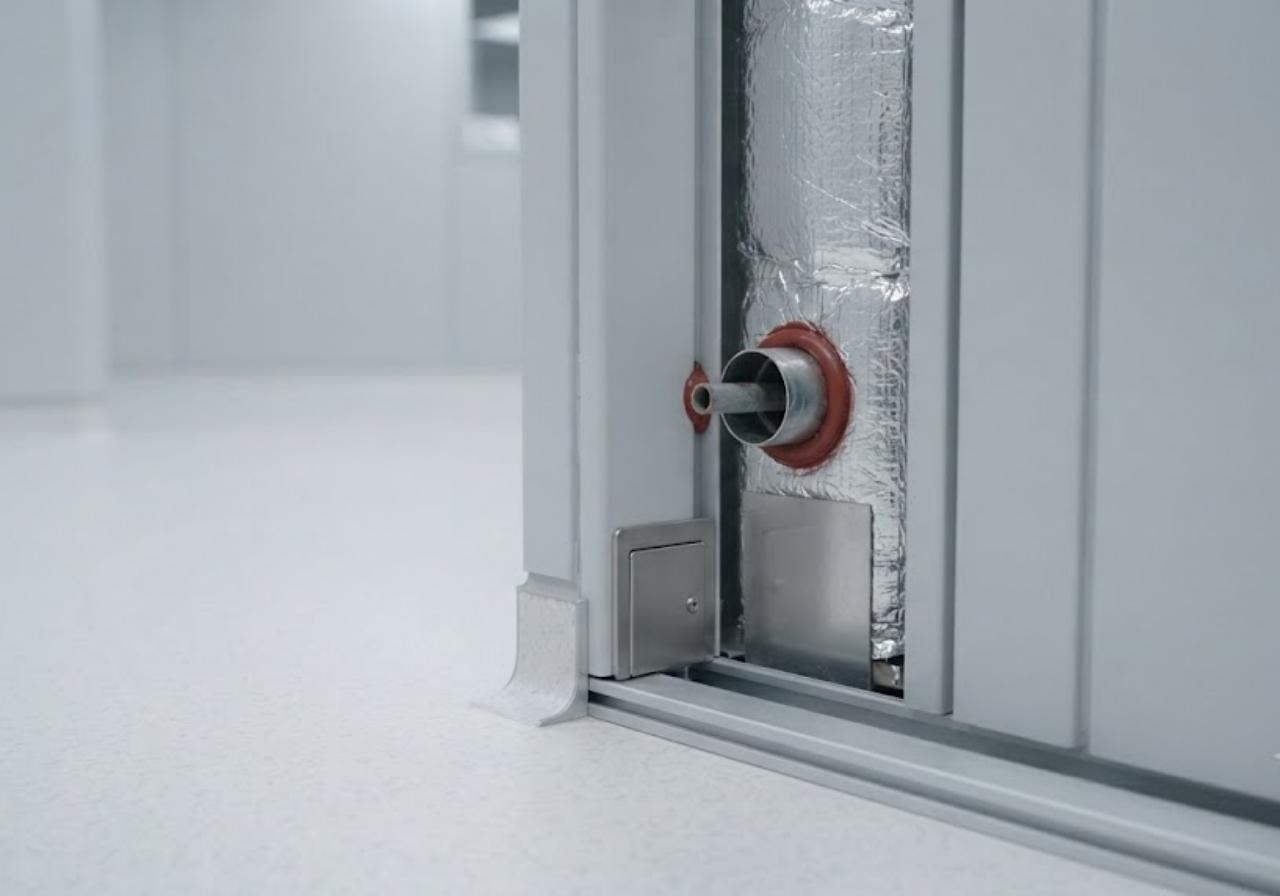

2. Wall Air Leaks Undercutting the Outdoor Air Calculation
A mechanical engineer’s outdoor air math assumes air enters the building through the HVAC system, not through gaps in the wall. An unsealed penetration lets unconditioned air skip the filtration and conditioning process entirely. That undermines both the air change count and the humidity target the system was designed to hold.

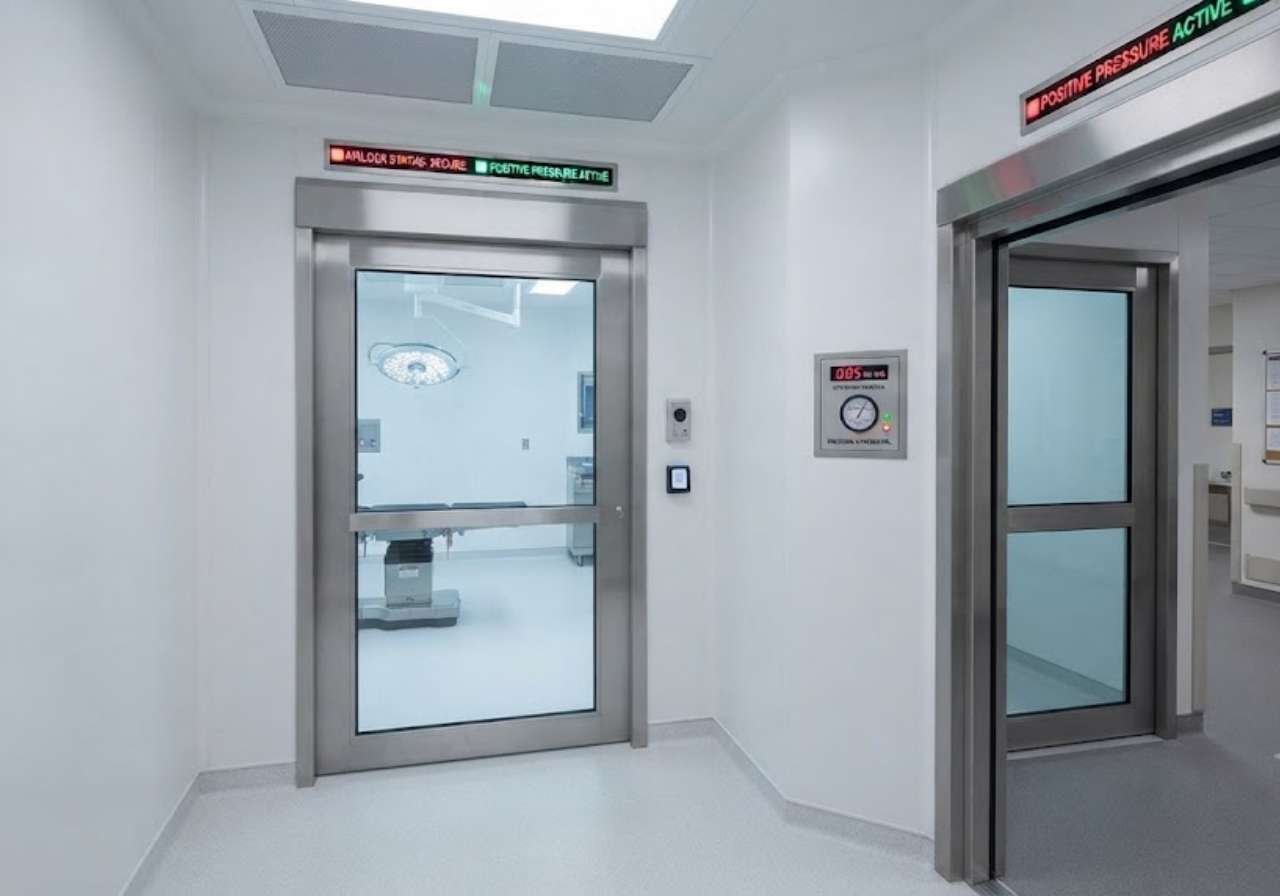

3. Penetrations That Break the Pressure Relationship Between Rooms
Positive pressure in an operating room only works one way. The space has to hold that pressure against the corridor outside it. A sealed envelope keeps that relationship stable. A wall with unaddressed gaps lets pressure leak the wrong way. Contaminated corridor air can get pulled toward the sterile field then, instead of clean air pushing outward the way the design intends.
Comparing Insulation Materials for a Denver Surgical Center
A surgical center treats each wall on its own terms. The operating suite carries the tightest limits in the building. Support spaces around it carry standard commercial rules instead.
Space
Material
Why It Fits
Operating room walls and roof
Closed-cell spray foam
Seals air to protect pressure and humidity
Sterile processing and storage
Closed-cell spray foam
Resists moisture near cleaning gear
Admin and waiting areas
Fiberglass batt
Good, wider tolerance
A closed-cell foam application built for Denver’s dry, wide-swinging climate holds its seal across a wider temperature range than standard batt does. That matters directly around an operating room. Keeping conditioned air where it belongs isn’t optional here, the way it might be in a typical office space. Spray foam sealed to a Denver metal roof deck addresses the roof half of this problem directly. It closes seams before they ever become the gap that undermines the whole pressure calculation downstream.
Why an Overworked HVAC System Costs More Than the Energy Bill Shows in Denver
A leaky envelope near an operating room doesn’t just raise Denver utility costs. A system fighting constant air leakage runs longer than its design cycle expects. That wears out equipment faster. Replacing it is expensive and disruptive in a space that can’t shut down for repairs. Central air systems working overtime often trace back to the same envelope gaps in Denver a mechanical engineer never planned for. Ductwork gets sized around an envelope that performs as drawn, not one with air leaks discovered years later.
Xcel Energy rebate programs sometimes apply to a healthcare upgrade like this. Rebate programs for Denver commercial insulation projects change from year to year. Confirming current terms first avoids planning around outdated numbers. Our team at Grizzly Insulation Co scopes a Denver surgical center project around the mechanical engineer’s actual design. We skip the generic spec. Both need to match. That match is how the finished building meets ASHRAE 170.
An operating room’s HVAC system does the visible, measurable work. It holds temperature, humidity, and pressure inside ASHRAE 170’s tight range. The building envelope around it does the invisible work. It makes that job achievable in the first place. A Denver surgical center built with a sealed, properly insulated envelope gives its mechanical system a fair fight against the outside climate. One built without that attention forces the same system to compensate for gaps nobody planned for. That cost shows up in energy bills, equipment lifespan, and ultimately in how reliably the room holds the exact conditions a surgical team depends on to keep a patient safe.
Design targets typically run between 68 and 75 degrees Fahrenheit. Relative humidity stays between 20 and 60 percent. Both apply continuously while the room is in use.
Indirectly, yes. Envelope gaps can throw off pressure relationships and outdoor air math. The HVAC system depends on both. Both tie directly to infection control in a surgical setting.
Yes. Thinner air at this elevation changes how mechanical systems get sized. It affects calibration too. That’s one more reason to hire contractors who know the local climate.
Why Do Denver Surgical Centers Need Special HVAC Insulation?
A Denver surgical center needs HVAC-focused insulation because the mechanical system inside an operating room follows rules a standard office building never faces. ASHRAE 170 requires a minimum of 20 total air changes per hour in an operating room, with at least four of those changes bringing in outdoor air. The room also needs constant positive pressure. Temperature and humidity cannot drift far. None of that happens on its own. The building envelope around the operating room has to support a system running harder and more precisely than a typical commercial HVAC unit ever does. Denver’s climate makes that job harder still than a steadier climate would.
Denver operating rooms don’t just need clean air. They need that air held to a specific range continuously, every hour of every day the room is in use. Design temperature typically runs between 68 and 75 degrees Fahrenheit, with relative humidity held between 20 and 60 percent. A drift outside either range risks surgical site infection, not just occupant comfort. The mechanical system carries the direct responsibility for holding these numbers, but the building envelope decides how much work that system has to do to get there and keep it.
Why Denver's Dry Climate Makes Humidity Control Harder
A common assumption trips up Denver facility planners early. Low outdoor humidity sounds like an advantage here. It should make a 20 to 60 percent indoor target easy to hit. It doesn’t work that way in practice, though. Dry outside air pulled in through a leaky envelope can drag indoor humidity below the minimum. Humid air pushes it too high somewhere else just as easily. Spray foam’s effect on indoor humidity control matters more in a Denver surgical center than in most other commercial buildings. Humidification equipment fighting outside air infiltration has almost no room for error.
Three Places Envelope Gaps Undermine an Operating Room's HVAC System
A surgical center’s mechanical engineer builds the HVAC system around a sealed envelope. A gap that shows up later pushes that system off its plan.
1. Roof Deck Heat Gain Fighting Positive Pressure
A poorly insulated roof over an operating room lets in more heat during a Denver summer afternoon than the system was sized to remove quickly. The system still has to hold positive pressure and temperature at the same time. It compensates by running harder instead of failing outright. Energy use climbs in a way that often goes unnoticed until the utility bill arrives.
2. Wall Air Leaks Undercutting the Outdoor Air Calculation
A mechanical engineer’s outdoor air math assumes air enters the building through the HVAC system, not through gaps in the wall. An unsealed penetration lets unconditioned air skip the filtration and conditioning process entirely. That undermines both the air change count and the humidity target the system was designed to hold.
3. Penetrations That Break the Pressure Relationship Between Rooms
Positive pressure in an operating room only works one way. The space has to hold that pressure against the corridor outside it. A sealed envelope keeps that relationship stable. A wall with unaddressed gaps lets pressure leak the wrong way. Contaminated corridor air can get pulled toward the sterile field then, instead of clean air pushing outward the way the design intends.
Comparing Insulation Materials for a Denver Surgical Center
A surgical center treats each wall on its own terms. The operating suite carries the tightest limits in the building. Support spaces around it carry standard commercial rules instead.
A closed-cell foam application built for Denver’s dry, wide-swinging climate holds its seal across a wider temperature range than standard batt does. That matters directly around an operating room. Keeping conditioned air where it belongs isn’t optional here, the way it might be in a typical office space. Spray foam sealed to a Denver metal roof deck addresses the roof half of this problem directly. It closes seams before they ever become the gap that undermines the whole pressure calculation downstream.
Why an Overworked HVAC System Costs More Than the Energy Bill Shows in Denver
A leaky envelope near an operating room doesn’t just raise Denver utility costs. A system fighting constant air leakage runs longer than its design cycle expects. That wears out equipment faster. Replacing it is expensive and disruptive in a space that can’t shut down for repairs. Central air systems working overtime often trace back to the same envelope gaps in Denver a mechanical engineer never planned for. Ductwork gets sized around an envelope that performs as drawn, not one with air leaks discovered years later.
Xcel Energy rebate programs sometimes apply to a healthcare upgrade like this. Rebate programs for Denver commercial insulation projects change from year to year. Confirming current terms first avoids planning around outdated numbers. Our team at Grizzly Insulation Co scopes a Denver surgical center project around the mechanical engineer’s actual design. We skip the generic spec. Both need to match. That match is how the finished building meets ASHRAE 170.
Good ventilation practices during spray foam installation in Denver matter more in a hospital than in most other buildings. Patients occupy the rooms next door during the work. They cannot handle the same disruption an empty office could. Denver healthcare facility projects can use financing options built for larger commercial budgets to spread this cost. A capital cycle absorbs it that way.
Conclusion
An operating room’s HVAC system does the visible, measurable work. It holds temperature, humidity, and pressure inside ASHRAE 170’s tight range. The building envelope around it does the invisible work. It makes that job achievable in the first place. A Denver surgical center built with a sealed, properly insulated envelope gives its mechanical system a fair fight against the outside climate. One built without that attention forces the same system to compensate for gaps nobody planned for. That cost shows up in energy bills, equipment lifespan, and ultimately in how reliably the room holds the exact conditions a surgical team depends on to keep a patient safe.
Frequently Asked Questions
ASHRAE 170 requires a minimum of 20 total air changes per hour. At least four of those changes must bring in outdoor air, not recirculated air.
Design targets typically run between 68 and 75 degrees Fahrenheit. Relative humidity stays between 20 and 60 percent. Both apply continuously while the room is in use.
Indirectly, yes. Envelope gaps can throw off pressure relationships and outdoor air math. The HVAC system depends on both. Both tie directly to infection control in a surgical setting.
Yes. Thinner air at this elevation changes how mechanical systems get sized. It affects calibration too. That’s one more reason to hire contractors who know the local climate.
