For a new home in Colorado, the wall insulation R-value the code asks for is R-30 in the cavity, or R-20 in the cavity plus R-5 of foam or board on the outside, or R-13 plus R-10 outside. That applies on the Front Range and in the mountains alike. A 2×6 wall holds R-19 to R-23 in the cavity, so it usually needs that outside layer too. A 2×4 wall holds R-13 to R-15, which works for an older home but not for new construction without thicker outside insulation.
Most homeowners don’t need to memorize the code. You just want to know what your walls can hold and what’s worth paying for. Our Grizzly Insulation Co crews insulate walls in Denver homes from 1920s bungalows to brand-new builds, so here’s how the numbers work in real walls.
What Does Wall Insulation R-Value Mean?
It’s a measure of how well the insulation slows heat. Higher numbers slow the heat more. A wall’s R-value depends on how deep the cavity is and what you fill it with.
There’s a catch, though. The number on the bag only covers the insulation between the studs. The wood studs themselves have a much lower R-value, so the whole wall performs a bit worse than the batt label says. Our guide to what R-value means covers the basics.
What Wall R-Value Does the Colorado Building Code Require?

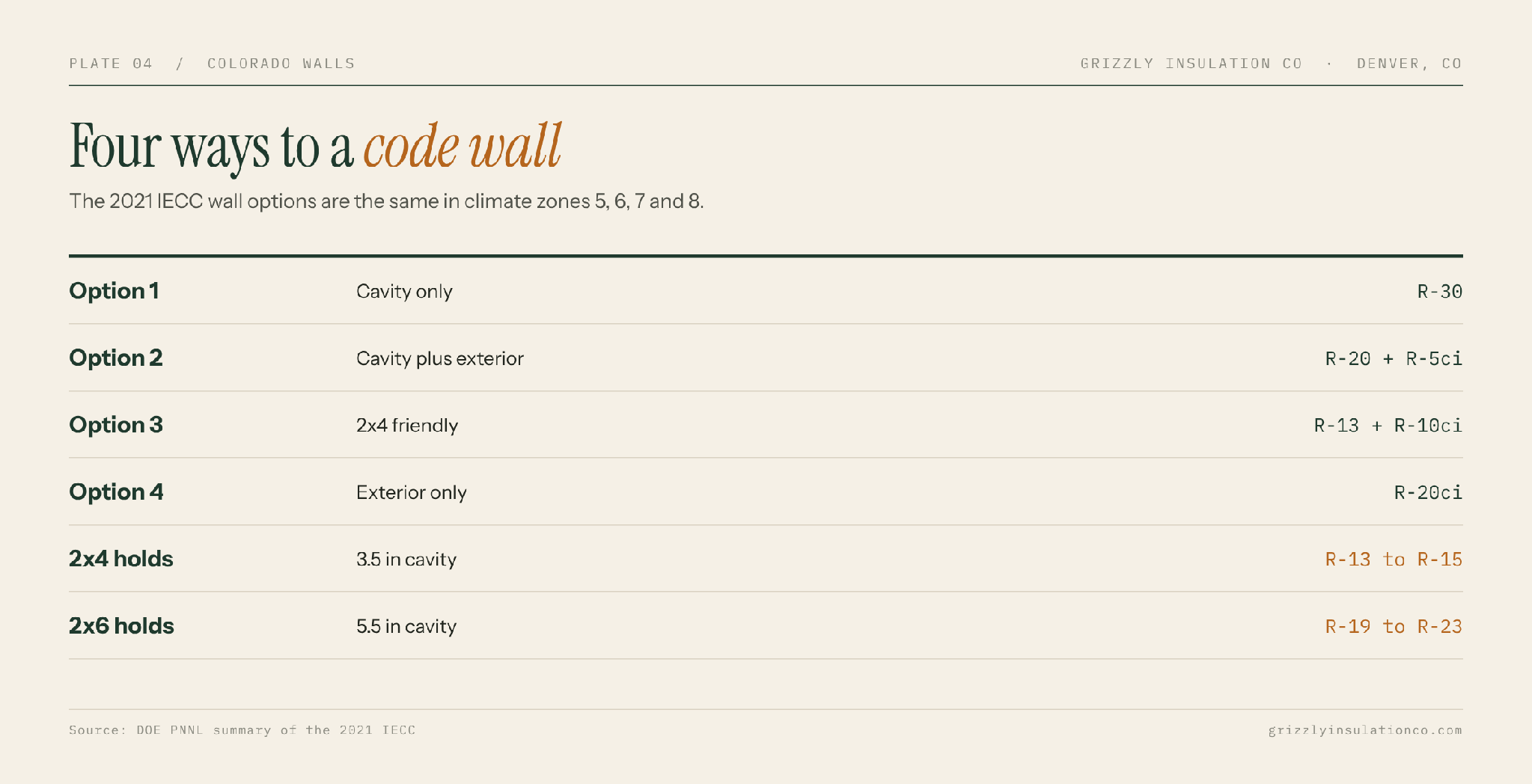

For new homes, the answer comes straight from the energy code most Colorado towns use. The Department of Energy’s summary of the 2021 IECC insulation requirements lists the same four wood-frame wall options for climate zones 5, 6, 7 and 8:
Option
Cavity insulation
Continuous insulation outside
1
R-30
None
2
R-20
R-5
3
R-13
R-10
4
None
R-20
Most of the Front Range, including Denver, is in climate zone 5. Higher mountain towns fall in zones 6 and 7. The wall rule is the same across all of them, while other parts of the house can differ. Since 2023, state law has required towns that update their codes to adopt the 2021 IECC or something equally strong, though each town still sets its own exact rules.
What R-Value Fits in a 2x4 Wall?
A 2×4 wall is 3.5 inches deep. That limits what you can fit:
Fiberglass batts: R-13 or R-15.
Mineral wool batts: R-15.
Dense-pack cellulose: about R-12 to R-13.
Open cell spray foam: about R-13.
Closed cell spray foam: about R-21 to R-23, at a much higher cost.
A 2×6 wall is 5.5 inches deep, so it holds about half again as much:
Fiberglass batts: R-19, R-20 or R-21. An R-19 batt is made for 6.25 inches and loses a little when squeezed into 5.5.
Mineral wool batts: R-23.
Dense-pack cellulose: about R-19 to R-20.
Open cell spray foam: about R-20.
Notice that none of these reach R-30 alone. That’s why new Colorado homes usually pair a 2×6 wall with R-5 board or foam on the outside. Our blog on closed cell spray foam R-value shows what foam can do per inch.
Why Does the Code Ask for Insulation Outside the Studs?
Because the studs leak heat. About a quarter of a typical wall is wood, between studs, plates and headers. Wood has roughly R-1 per inch, so every stud is a thin cold strip through your insulation.
A layer of board on the outside runs over the studs and covers that weak spot. That’s why R-20 inside plus R-5 outside counts the same as R-30 in the cavity. Our guide to the best wall insulation for cold climates compares the options.
Is a 2x4 Wall With Exterior Insulation Better Than a 2x6 Wall?
They can perform about the same, and the code treats them as equal options. A 2×4 wall with R-13 batts plus R-10 outside matches a 2×6 wall with R-20 plus R-5 outside. The outside layer does a lot of the work in both, because it covers the studs.
So the choice is mostly about cost and building details. A 2×6 wall gives you deeper window sills and more room for batts, but uses more lumber. A 2×4 wall with thicker exterior board saves lumber but needs longer fasteners and deeper window trim. In the colder mountain zones, some builders go further with both, using 2×6 walls and thick exterior boards together.
Does an Older Colorado Home Have to Meet the New Wall R-Value?
No. The code applies to new construction and to new work during permitted remodels. Your existing walls can stay as they are. If you open a wall during a permitted remodel, though, your building department may expect that section to be insulated to current standards, so ask before you close it back up.
Not always. You’ll hear that “more R-value always pays off,” as if every extra point saves the same money. That’s not how heat loss works. Going from an empty wall to R-13 makes a big difference. Going from R-21 to R-23 makes a small one.
If your walls were ours, we’d fill empty cavities first, then air seal, then think about the attic. Most Denver homes lose more heat through the attic and air leaks than through walls that already have some insulation. Once those are handled, the extra wall R-value starts to make sense, especially during a new build or re-siding. Check ceiling insulation R-value to see how your attic compares.
Which Wall Insulation Gives the Highest R-Value per Inch?
Closed cell spray foam, at about R-6 to R-7 per inch. Polyiso foam board comes close at about R-6. Mineral wool and fiberglass batts run about R-3.5 to R-4.2. Our blog on the highest R-value insulation lines them all up.
Higher per inch doesn’t always mean better value, though. Closed cell foam costs much more, so it’s best saved for tight spots like shallow walls, rim joists or walls that need extra strength. Our spray foam insulation team can tell you when it’s worth it.
Why Do Walls Fall Short of Their Labeled R-Value?
Mostly because of how the insulation went in. A batt only delivers its full R-value when it fills the cavity completely, front to back and top to bottom. Squeeze it behind wires, leave a gap at the top plate, or let it sag, and moving air slips around it.
We open older walls all the time and find batts that were stuffed in, cut short or never fluffed out. Loose fill blown in at low density can also settle over the years and leave an empty band at the top of each cavity. Dense-pack cellulose and well-fitted batts avoid both problems. So when you compare quotes, ask how the crew will fit the insulation around outlets, pipes and wiring. That answer matters as much as the number on the bag.
Moisture is the other thief. Wet fiberglass or cellulose loses a big share of its R-value until it dries, which is one more reason to fix leaks before you insulate. Our blown-in insulation crews dense-pack walls so the fill stays put for decades.
What Wall R-Value Should You Aim for in a Denver Remodel?
Here’s what we’d suggest for most remodels:
Opening a 2×4 wall: R-15 mineral wool or fiberglass, with careful air sealing.
Opening a 2×6 wall: R-21 fiberglass or R-23 mineral wool.
Re-siding the house: add R-5 to R-10 board outside while the siding is off.
Closed, empty walls: dense-pack cellulose or injection foam.
Conclusion
Colorado’s code asks a lot from new walls, but your goal for an existing home is simpler: fill empty cavities, seal the leaks, and add outside insulation when the siding comes off. Match the R-value to the wall you have, and you’ll feel the difference all winter. For the whole-house picture, see how much insulation you need.
Want to know what’s in your walls and what they should have? Grizzly Insulation Co can check and give you a straight answer for your Denver home. We’re BPI Certified and an Xcel Energy rebate partner.
What Wall Insulation R-Value Colorado Homes Need for 2×4 and 2×6 Walls
For a new home in Colorado, the wall insulation R-value the code asks for is R-30 in the cavity, or R-20 in the cavity plus R-5 of foam or board on the outside, or R-13 plus R-10 outside. That applies on the Front Range and in the mountains alike. A 2×6 wall holds R-19 to R-23 in the cavity, so it usually needs that outside layer too. A 2×4 wall holds R-13 to R-15, which works for an older home but not for new construction without thicker outside insulation.
Most homeowners don’t need to memorize the code. You just want to know what your walls can hold and what’s worth paying for. Our Grizzly Insulation Co crews insulate walls in Denver homes from 1920s bungalows to brand-new builds, so here’s how the numbers work in real walls.
What Does Wall Insulation R-Value Mean?
It’s a measure of how well the insulation slows heat. Higher numbers slow the heat more. A wall’s R-value depends on how deep the cavity is and what you fill it with.
There’s a catch, though. The number on the bag only covers the insulation between the studs. The wood studs themselves have a much lower R-value, so the whole wall performs a bit worse than the batt label says. Our guide to what R-value means covers the basics.
What Wall R-Value Does the Colorado Building Code Require?
For new homes, the answer comes straight from the energy code most Colorado towns use. The Department of Energy’s summary of the 2021 IECC insulation requirements lists the same four wood-frame wall options for climate zones 5, 6, 7 and 8:
Most of the Front Range, including Denver, is in climate zone 5. Higher mountain towns fall in zones 6 and 7. The wall rule is the same across all of them, while other parts of the house can differ. Since 2023, state law has required towns that update their codes to adopt the 2021 IECC or something equally strong, though each town still sets its own exact rules.
What R-Value Fits in a 2x4 Wall?
A 2×4 wall is 3.5 inches deep. That limits what you can fit:
If you’re choosing between the two common batts, see R13 vs R15 insulation. For older homes with R-11 batts, our blog on the difference between R11 and R13 explains what you’re missing.
What R-Value Fits in a 2x6 Wall?
A 2×6 wall is 5.5 inches deep, so it holds about half again as much:
Notice that none of these reach R-30 alone. That’s why new Colorado homes usually pair a 2×6 wall with R-5 board or foam on the outside. Our blog on closed cell spray foam R-value shows what foam can do per inch.
Why Does the Code Ask for Insulation Outside the Studs?
Because the studs leak heat. About a quarter of a typical wall is wood, between studs, plates and headers. Wood has roughly R-1 per inch, so every stud is a thin cold strip through your insulation.
A layer of board on the outside runs over the studs and covers that weak spot. That’s why R-20 inside plus R-5 outside counts the same as R-30 in the cavity. Our guide to the best wall insulation for cold climates compares the options.
Is a 2x4 Wall With Exterior Insulation Better Than a 2x6 Wall?
They can perform about the same, and the code treats them as equal options. A 2×4 wall with R-13 batts plus R-10 outside matches a 2×6 wall with R-20 plus R-5 outside. The outside layer does a lot of the work in both, because it covers the studs.
So the choice is mostly about cost and building details. A 2×6 wall gives you deeper window sills and more room for batts, but uses more lumber. A 2×4 wall with thicker exterior board saves lumber but needs longer fasteners and deeper window trim. In the colder mountain zones, some builders go further with both, using 2×6 walls and thick exterior boards together.
Does an Older Colorado Home Have to Meet the New Wall R-Value?
No. The code applies to new construction and to new work during permitted remodels. Your existing walls can stay as they are. If you open a wall during a permitted remodel, though, your building department may expect that section to be insulated to current standards, so ask before you close it back up.
For empty walls in an older home, filling them to R-13 or so is still a huge improvement. Our guides to injection foam installation and insulating existing interior walls show how it’s done without gutting the house.
Is a Higher Wall R-Value Always Worth Paying For?
Not always. You’ll hear that “more R-value always pays off,” as if every extra point saves the same money. That’s not how heat loss works. Going from an empty wall to R-13 makes a big difference. Going from R-21 to R-23 makes a small one.
If your walls were ours, we’d fill empty cavities first, then air seal, then think about the attic. Most Denver homes lose more heat through the attic and air leaks than through walls that already have some insulation. Once those are handled, the extra wall R-value starts to make sense, especially during a new build or re-siding. Check ceiling insulation R-value to see how your attic compares.
Which Wall Insulation Gives the Highest R-Value per Inch?
Closed cell spray foam, at about R-6 to R-7 per inch. Polyiso foam board comes close at about R-6. Mineral wool and fiberglass batts run about R-3.5 to R-4.2. Our blog on the highest R-value insulation lines them all up.
Higher per inch doesn’t always mean better value, though. Closed cell foam costs much more, so it’s best saved for tight spots like shallow walls, rim joists or walls that need extra strength. Our spray foam insulation team can tell you when it’s worth it.
Why Do Walls Fall Short of Their Labeled R-Value?
Mostly because of how the insulation went in. A batt only delivers its full R-value when it fills the cavity completely, front to back and top to bottom. Squeeze it behind wires, leave a gap at the top plate, or let it sag, and moving air slips around it.
We open older walls all the time and find batts that were stuffed in, cut short or never fluffed out. Loose fill blown in at low density can also settle over the years and leave an empty band at the top of each cavity. Dense-pack cellulose and well-fitted batts avoid both problems. So when you compare quotes, ask how the crew will fit the insulation around outlets, pipes and wiring. That answer matters as much as the number on the bag.
Moisture is the other thief. Wet fiberglass or cellulose loses a big share of its R-value until it dries, which is one more reason to fix leaks before you insulate. Our blown-in insulation crews dense-pack walls so the fill stays put for decades.
What Wall R-Value Should You Aim for in a Denver Remodel?
Here’s what we’d suggest for most remodels:
Conclusion
Colorado’s code asks a lot from new walls, but your goal for an existing home is simpler: fill empty cavities, seal the leaks, and add outside insulation when the siding comes off. Match the R-value to the wall you have, and you’ll feel the difference all winter. For the whole-house picture, see how much insulation you need.
Want to know what’s in your walls and what they should have? Grizzly Insulation Co can check and give you a straight answer for your Denver home. We’re BPI Certified and an Xcel Energy rebate partner.
Call (303) 854-6221 for a free estimate.
Frequently Asked Questions
For new homes, R-30, or R-20 plus R-5 continuous insulation, or R-13 plus R-10 continuous insulation.
For an existing 2×4 wall, it’s a solid upgrade. New homes need R-13 plus R-10 outside.
Not with batts alone. Closed cell spray foam can get close, but most builders add outside board instead.
The wall rule is the same in zones 5 through 8, but attics and some other areas need more.
R-15 batts for open walls, dense-pack cellulose for closed walls.
